IDC-69RS - Datasheet

MBA

Category Information

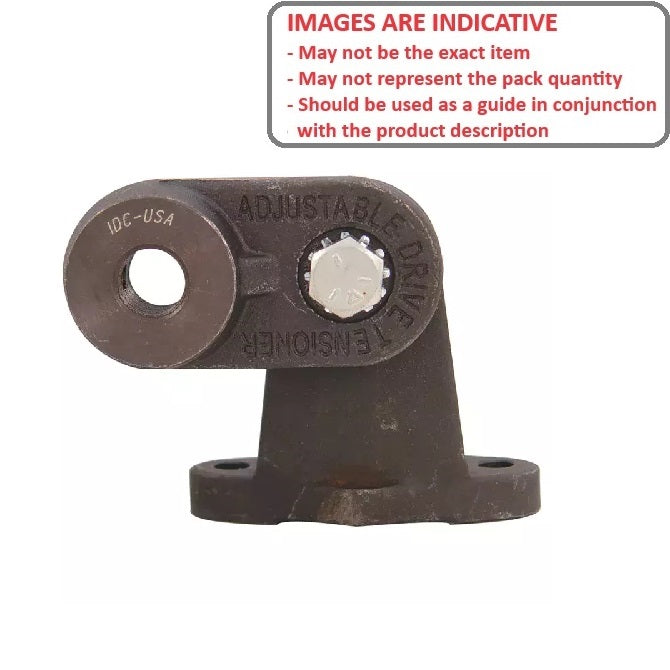

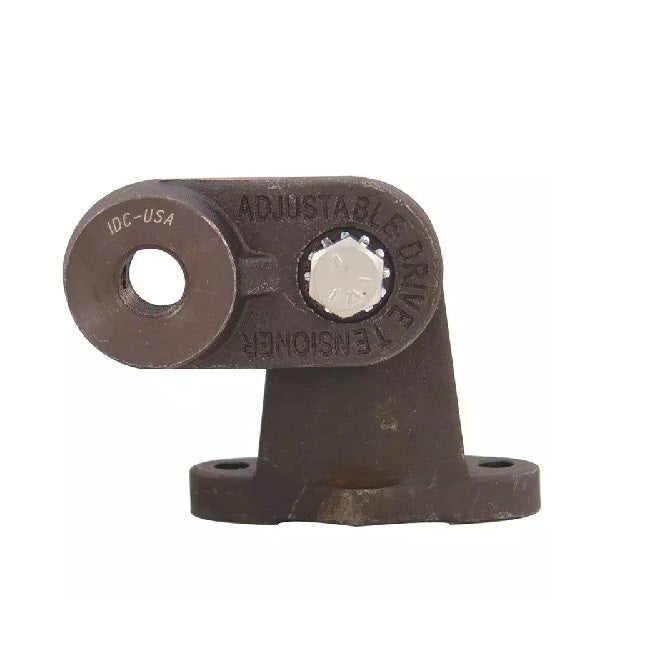

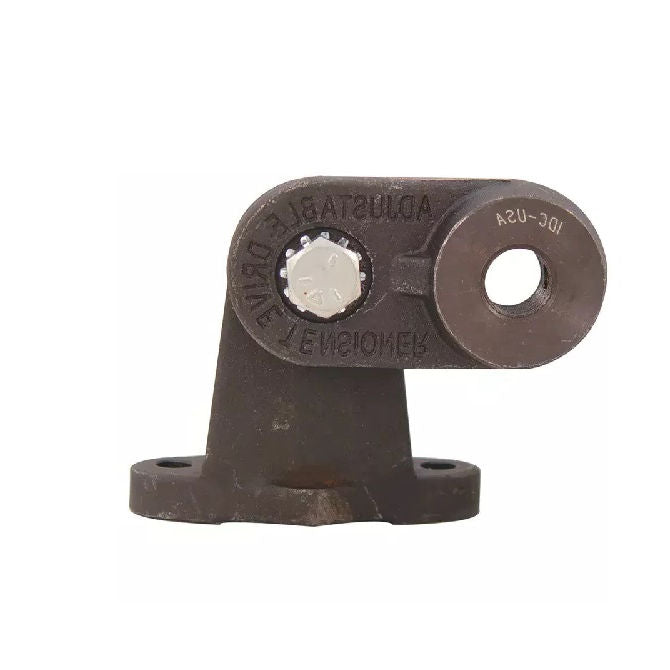

Tensioner - Drive - Adjustable Angle - Plain

Plain Adjustable Angle Drive Tensioner. Use with idler shafts and idler pulleys. Fixed base with adjustable arm through 360o.

  • Idler shaft and pulleys not included with tensioner

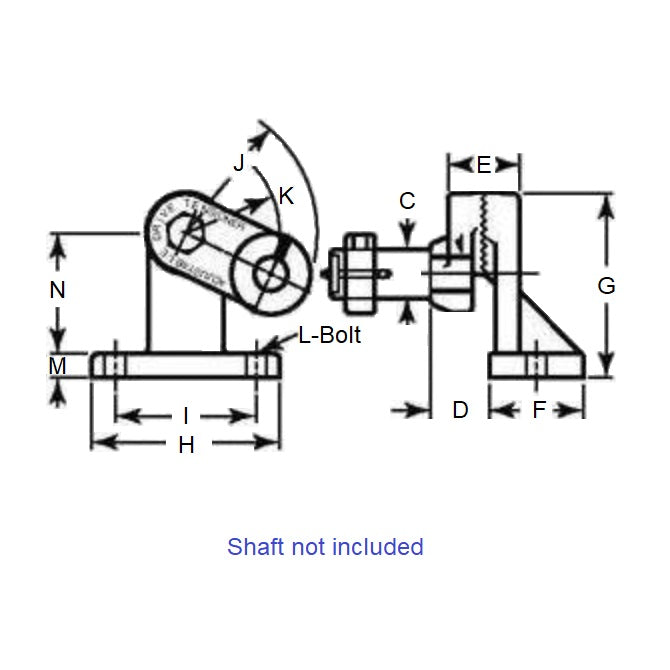

Product Data

  • Bore (C) : 38.100 mm
    (Equiv. 1.5 in.)
  • Arm Width (D) 44.450 mm
    (Equiv. 1.75 in.)
  • E 60.325 mm
    (Equiv. 2.375 in.)
  • Plate Width (F) 88.900 mm
  • Overall Height (G) 187.325 mm
  • Overall Width (H) 190.500 mm
  • Bolt Centres (I) 152.400 mm
  • Centre of Mount to End (J) 165.100 mm
  • Centre of Mount to Bore (K) 127.000 mm
  • Bolt Size (L) 1-14 x 15.88
  • M / N 19.05 / 130.175 mm
  • Approx Weight 6.44 Kg
Country of Origin: US
