CCE-03600-S15 - Datasheet
MBA
Category Information

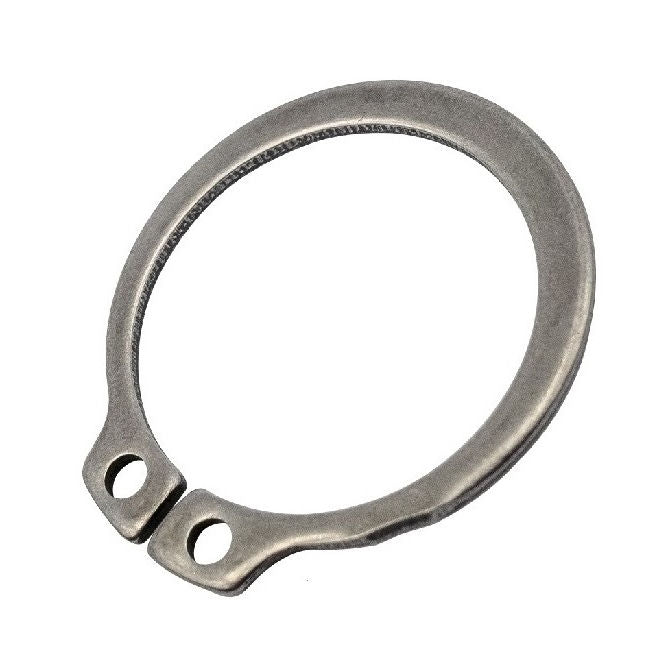

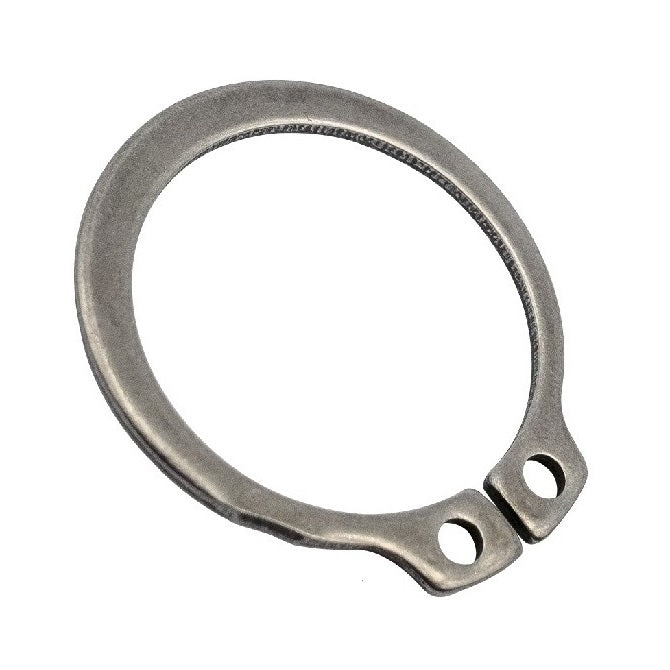

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
36.00
mm
(Equiv. 1.417 in.) - Clip Thickness (T)
1.75
mm
+ 0.00 / - 0.25
(Equiv. 0.069 in.) - Groove Dia. (Dg)
34.00
mm
+ 0.00 / - 0.06
(Equiv. 1.339 in.) - Approx. Loose Circlip ID (A) 33.20 mm
- Groove Width (W) 1.85 mm
- Clearance on Shaft (C1) 47.80 mm
- Clearance in Groove (C1) 45.20 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.00
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-036-SS
- 90967A330
- Seeger A-036-SS
- Seeger A36X1.75-411
- Bossard BN818-036-SS
- Waldes D1400-036-SS
- NoCor DSH-036-SS
- Rotor Clip DSH-036-SS
- DSH036SS
- 1400-0360KSF
- 14000360KSF
- D14000360KSF
- D1400-0360KSF
- D1400036SS
- A036SS
- A36X175411
- 471036SS
- BN818036SS
