MSF-064C-CCCRP - Datasheet
MBA
Category Information

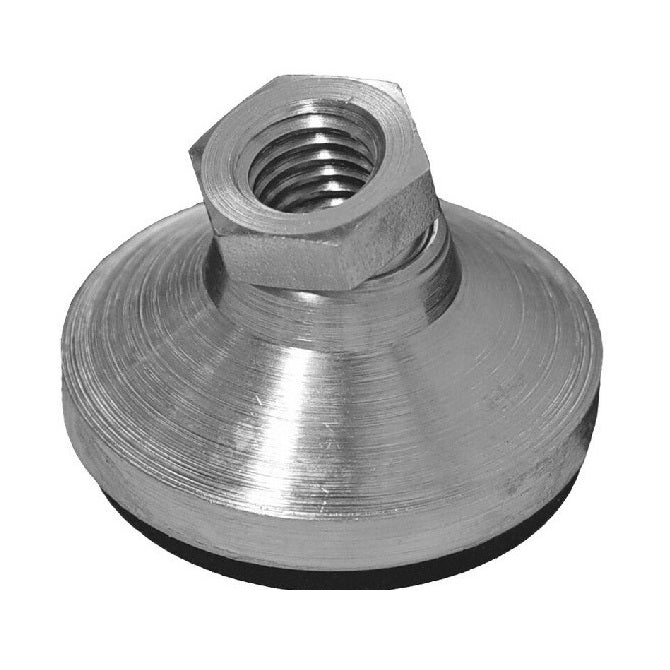

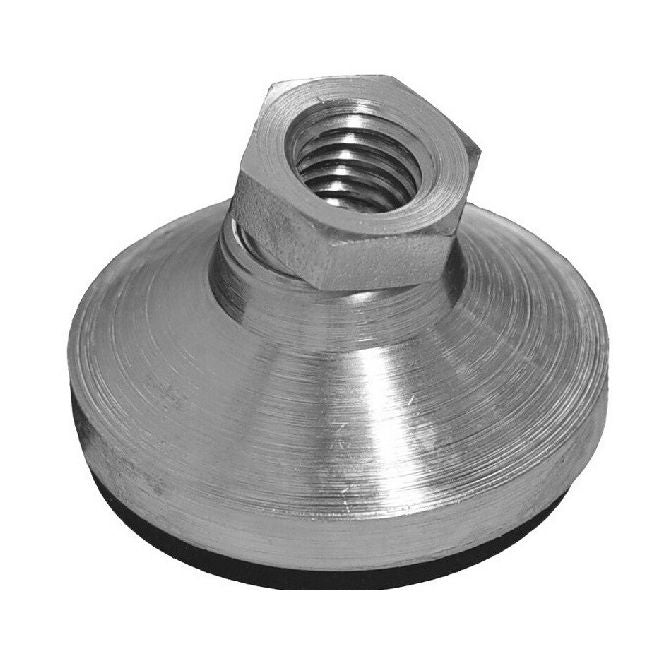

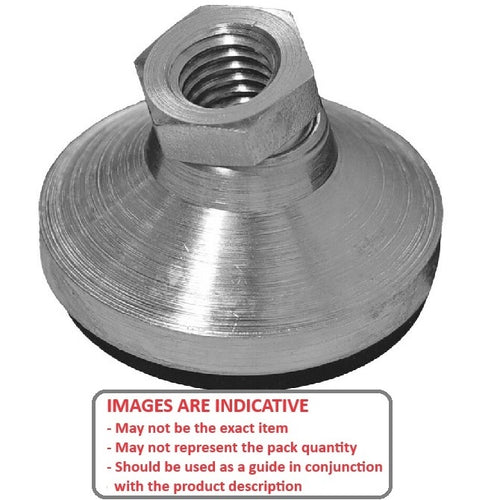

Mounts - Levelling Socket - Swivel - Clear Chromate - Rubber PaddedRubber Padded Clear Chromate Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
21.1
mm
(Equiv. 0.831 in.) - Min. Thread Depth 7.9 mm
- Base Height (E) 7.11 mm
- Load Rating 360 Kg
- Finish Clear Chromate
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 12.70 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSF0360064CCCR
- LES6
- LES-6
