MSM-064C-032-S3AB - Datasheet
MBA
Category Information

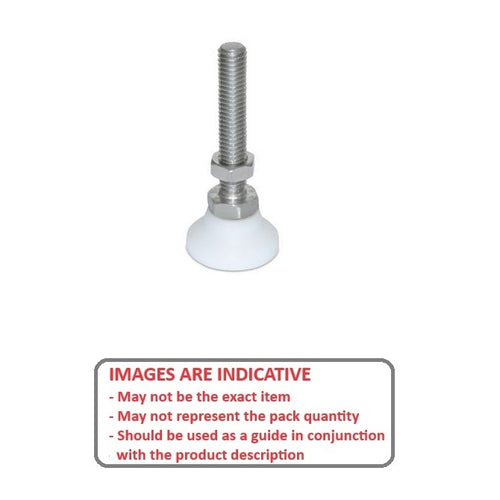

Mounts - Levelling Studded - Swivel - 303 Stainless - Acetal BaseAcetal Base 303 Stainless Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.9
mm
(Equiv. 0.705 in.) - Thread Length (F) 31.8 mm
- Base Height (E) 3.96 mm
- Overall Height 49.7 mm
- Load Rating 360 Kg
- Pad Material Delrin
- Hex Flats (B) 12.700 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSM0360064CS3A
- TD-0SS
- TD0SS
