CCI-03500-S15 - Datasheet
MBA
Category Information

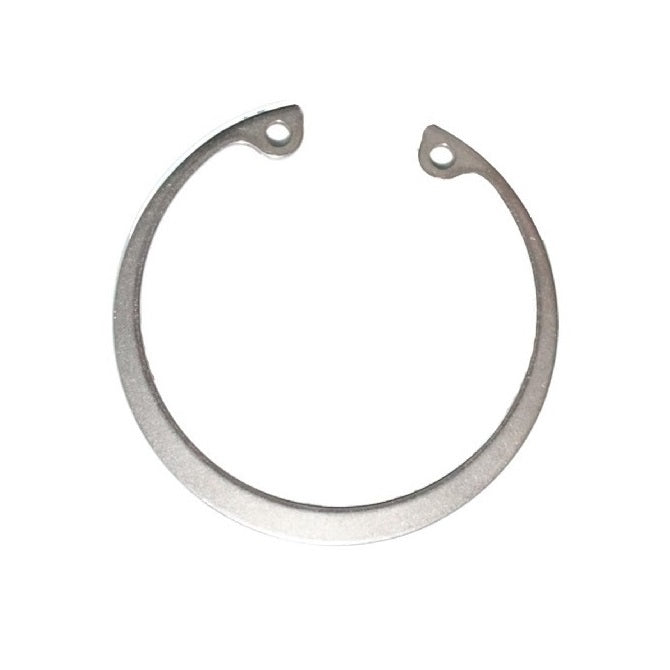

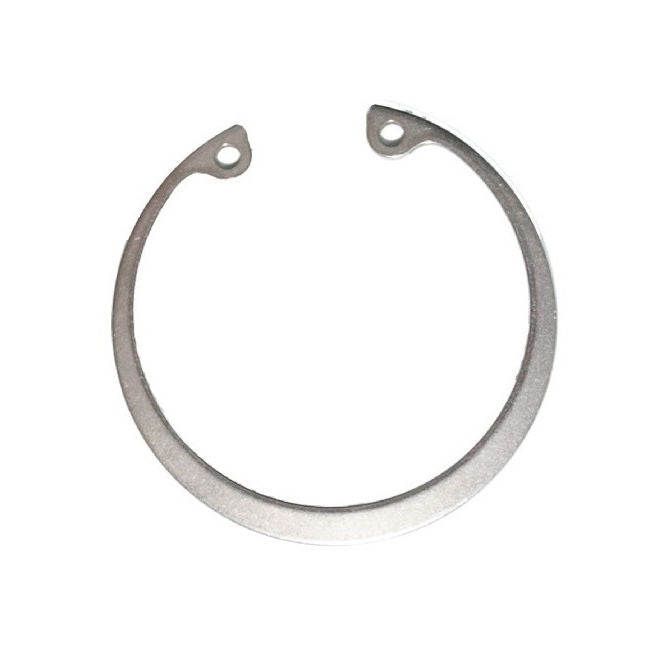

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
35.00
mm
(Equiv. 1.378 in.) - Clip Thickness (T)
1.50
mm
+ 0.25 / - 0.00
(Equiv. 0.059 in.) - Groove Dia. (Dg)
37.00
mm
+ 0.00 / - 0.06
(Equiv. 1.457 in.) - Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
- Groove Width (W) 1.60 mm + 0.10 / - 0.00
- Clearance in Bore (C) 23.60 mm
- Clearance in Groove (C1) 26.20 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.00
- Standard DIN472
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-035-SS
- Bossard BN-822-035-SS
- Waldes D1300-035-SS
- NoCor DHO-035-SS
- Rotor Clip DHO-035-SS
- Seeger J-035-SS
- Seeger J35K500-BLS
- Seeger J35X1.5-411
- Seeger J35X1.5SS
- D1300035SS
- D13000350KSF
- D1300-0350KSF
- J35K500BLS
- J35X15411
- J035SS
- DHO035SS
- 472035SS
- BN822035SS
