IP-138RS - Datasheet
MBA
Category Information

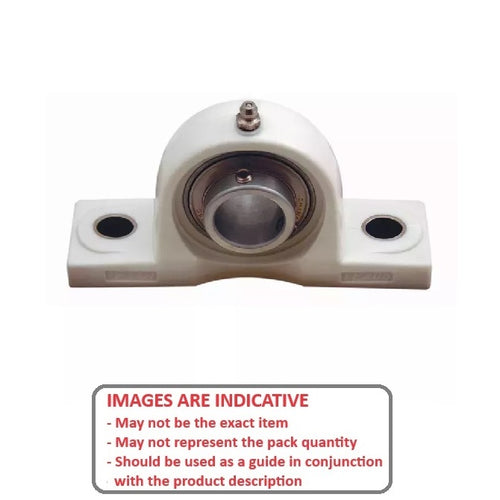

Housing Assembly - Pillow Block - Thermoplastic and StainlessThermoplastic and Stainless Pillow Block Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- An expanded range may be available on special order. Please enquire.
- Food grade.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
- Bearings are 440C stainless steel. Bushings and grease fittings are 300 grade stainless steel.

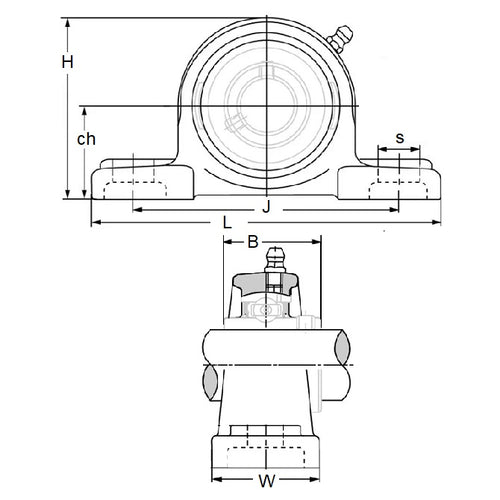

Product Data
- Inside Diameter
:
35.000
mm
(Equiv. 1.378 in.) - Centre Height (A)
47.600
mm
(Equiv. 1.874 in.) - Length (B)
168.000
mm
(Equiv. 6.614 in.) - Width (C) 48.000 mm
- Foot Height (D) 18.000 mm
- Bolt Centres (E) 127.000 mm
- Bolt Hole Size (G) 18.000 mm
- Height (H) 94.000 mm
- K 17.500 mm
- L 25.400 mm
