MLF-127A-CGC - Datasheet

MBA

Category Information

Mounts - Levelling Socket - Swivel - Acme Thread - Gold Chromate

Gold Chromate Acme Thread Swivel Levelling Socket Mounts. Levelling adjusters. Use acme thread to make a custom stud.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size (A) : 1/2-10 (12.7 mm)
  • Base Diameter (D) 47.6 mm
  • Foot Height (C) 28.6 mm
  • Min. Thread Depth 14.3 mm
  • Load Rating 3400 Kg
  • Gold Chromate
  • Hex Flats (E) 19.05 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® ACM-180
    • MLF3400127AG
    • ACM180
    View full details

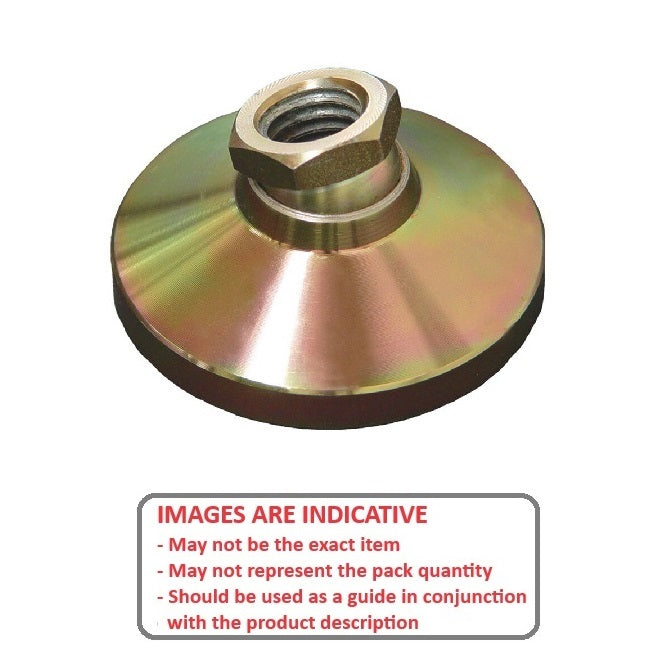

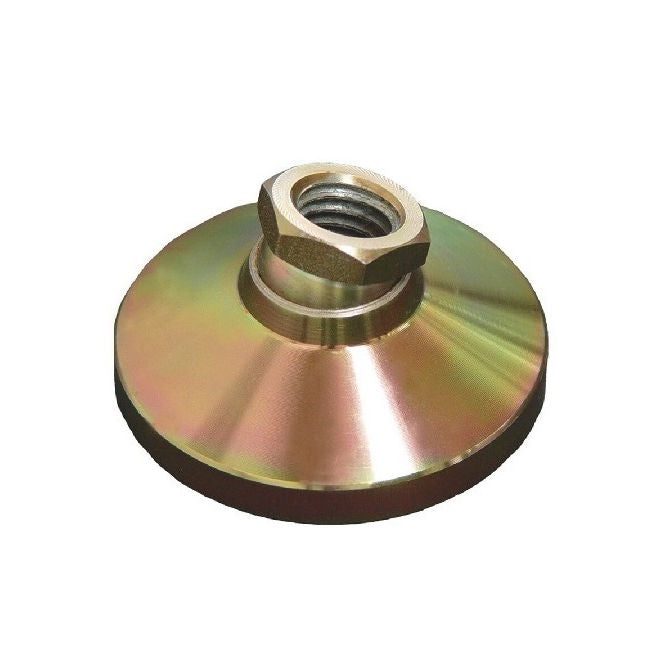

    MLF-127A-CGCDiagramMLF-127A-CGCImage
