WRE-0349-SQ-HO - Datasheet

MBA

Category Information

Retaining Rings - External - Snap Rings - Carbon Steel

Carbon Steel Snap Rings External Retaining Rings. Includes series M3200 / SP / ESP / M2400 / SW snaprings. Similar to a circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Carbon sping steel
  • Used on the outside diameter of a bearing, shaft or similar equipment

Product Data

  • Shaft or Bearing OD (d1) : 34.93 mm
    (Equiv. 1.375 in.)
  • Clip Thickness (T) 4.37 mm +/- 0.08
    (Equiv. 0.172 in.)
  • Groove Dia. (Dg) 32.74 mm + 0.08 / - 0.00
    (Equiv. 1.289 in.)
  • Approx. Loose Circlip ID (A) 32.41 mm + 0.00 / - 1.20
  • Radial Wall (S) min/max 4.37 mm +/- 0.08
  • Groove Width (W) 4.57 mm
  • Approx. Loose Clip OD 41.15
  • Info Radial Assembly - Open Gap
  • Section Profile Square Section
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton 400-251
  • Arcon CSO-251
  • NoCor XSO-251
  • XSO251
  • A0600-251
  • A0600251
  • CSO251
  • 400251
View full details

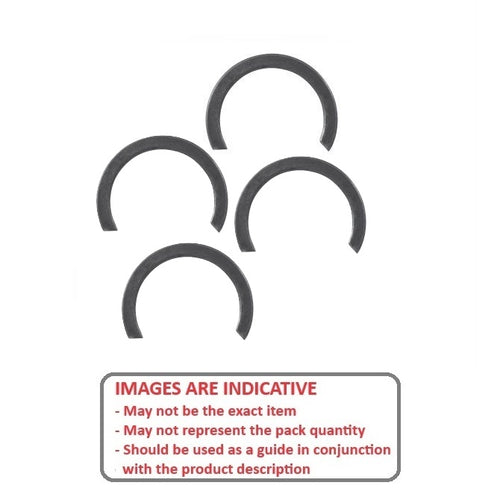

WRE-0349-SQ-HODiagramWRE-0349-SQ-HOImage
