CCI-03493-CZY - Datasheet

MBA

Category Information

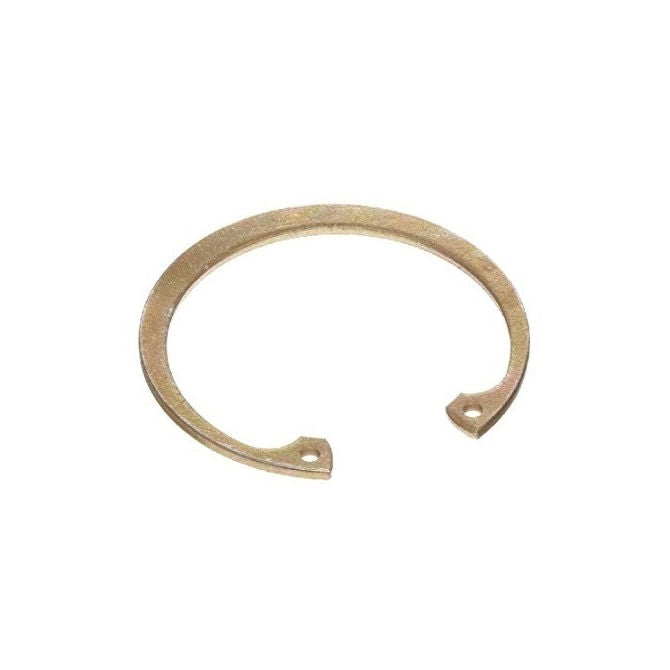

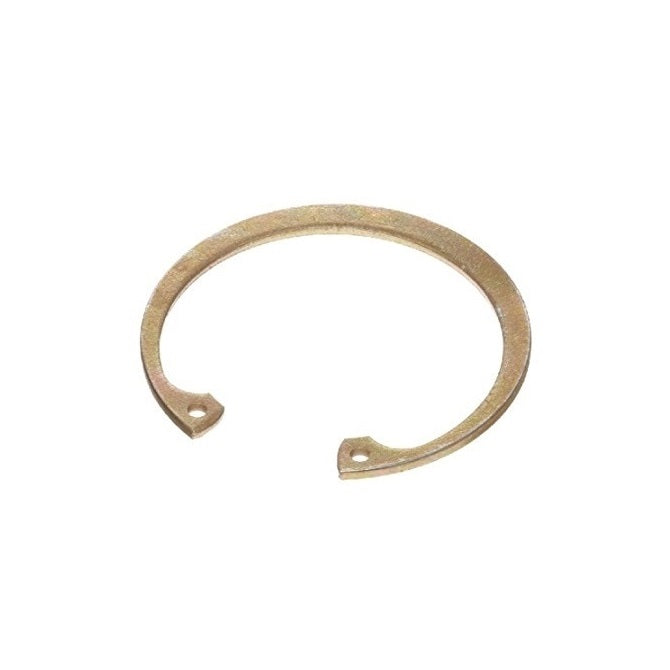

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 34.93 mm
(Equiv. 1.375 in.)
Clip Thickness (T) 1.27 mm _{+/- 0.102}
(Equiv. 0.05 in.)
Groove Dia. (Dg) 37.11 mm _{+ 0.00 / - 0.06}
(Equiv. 1.461 in.)
Approx. Loose Circlip OD (Dr) 38.76 mm + 0.64 / - 0.38
Groove Width (W) 1.42 mm + 0.10 / - 0.00
Clearance in Bore (C) 25.40 mm
Clearance in Groove (C1) 27.43 mm
Min. Lug Diameter (h) 1.93 mm
Min. Extension (n) 3.28
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US
