MSM-191C-102-CNP - Datasheet
MBA
Category Information

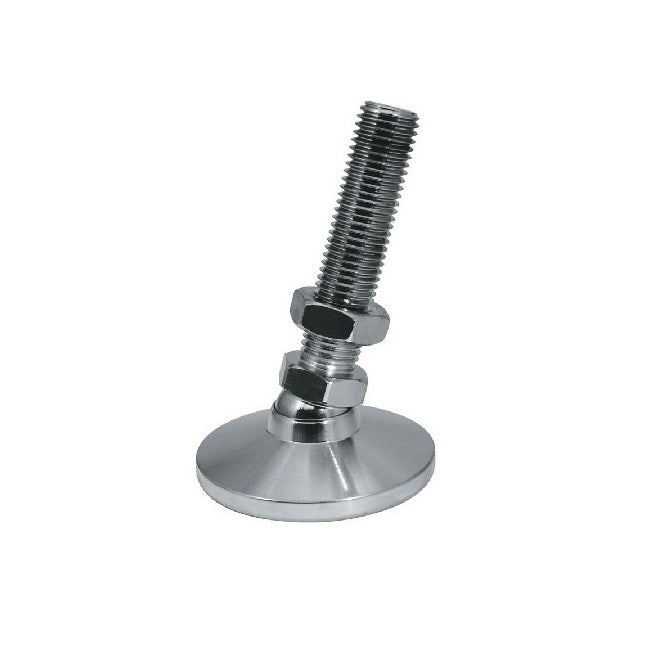

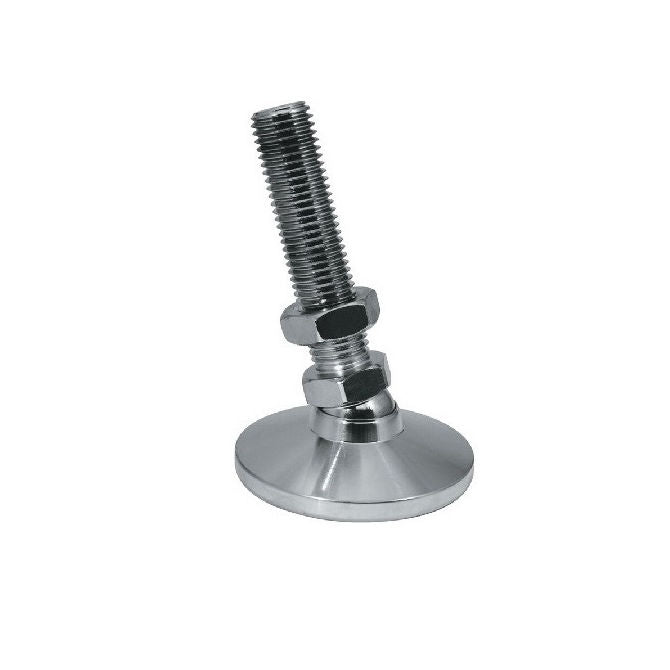

Mounts - Levelling Studded - Swivel - Plated - StandardStandard Plated Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
38.1
mm
(Equiv. 1.5 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 12.70 mm
- Overall Height 139.7 mm
- Load Rating 3350 Kg
- Finish Nickel Plated
- Hex Flats (B) 26.988 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6111K63
- MSM3360191CLNP
- TLN-35
- TLN35
