Category Information

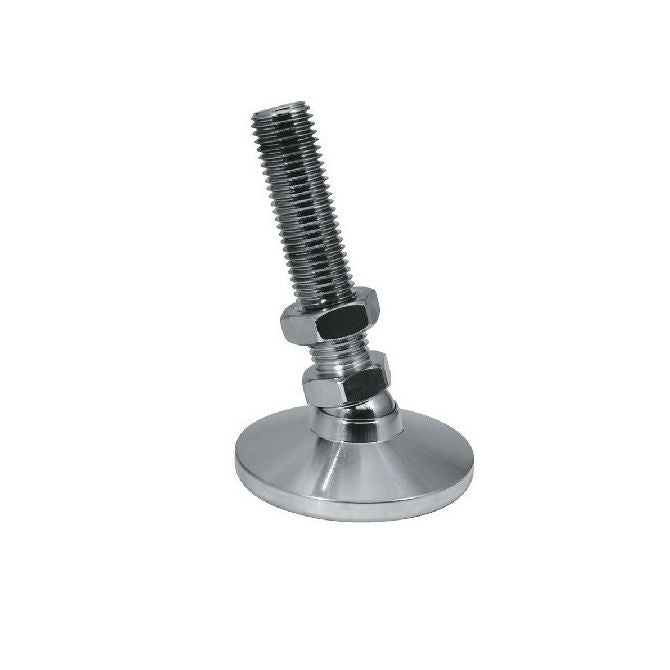

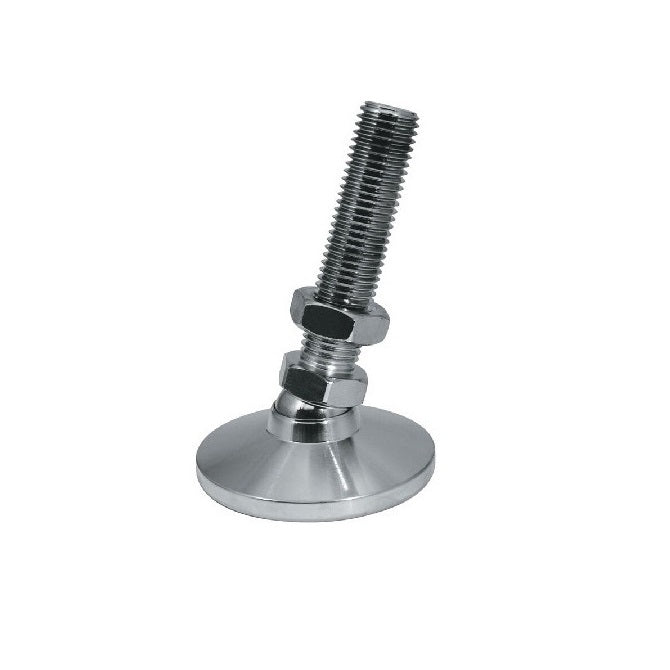

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : M20 (20x2.5mm)
- Base Diameter (D)
76.0
mm
(Equiv. 2.992 in.) - Foot Height (C)
38.0
mm
(Equiv. 1.496 in.) - Thread Length (F) 51.0 mm
- Base Height (E) 13.00 mm
- Overall Height 89.0 mm
- Load Rating 3270 Kg
- Finish Nickel Plated
- Hex Flats (B) 30.00 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM3270M20NP
- HVTM-30N
- HVTM30N
