MLM-191C-051-CNP - Datasheet
MBA
Category Information

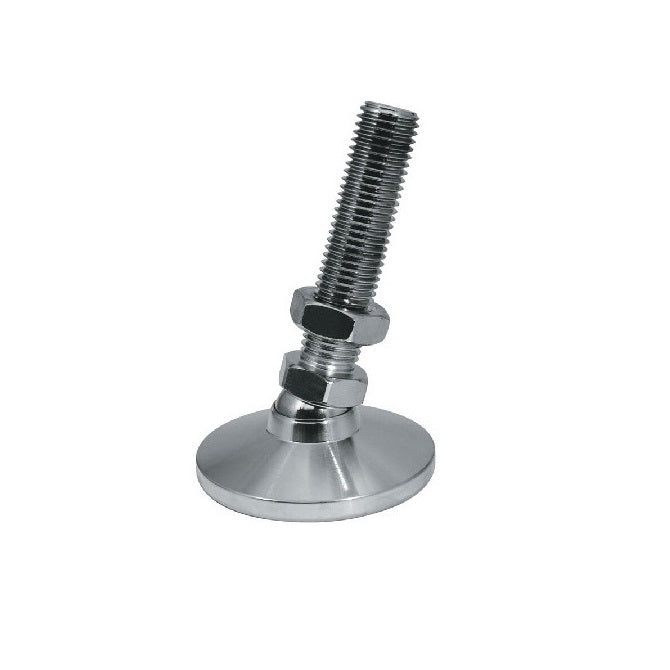

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
38.1
mm
(Equiv. 1.5 in.) - Thread Length (F) 50.8 mm
- Base Height (E) 12.70 mm
- Overall Height 88.9 mm
- Load Rating 3270 Kg
- Finish Nickel Plated
- Hex Flats (B) 26.988 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM3270191CNP
- HVTL4N
- HVTL-4N
