MLM-191C-102-S3 - Datasheet
MBA
Category Information

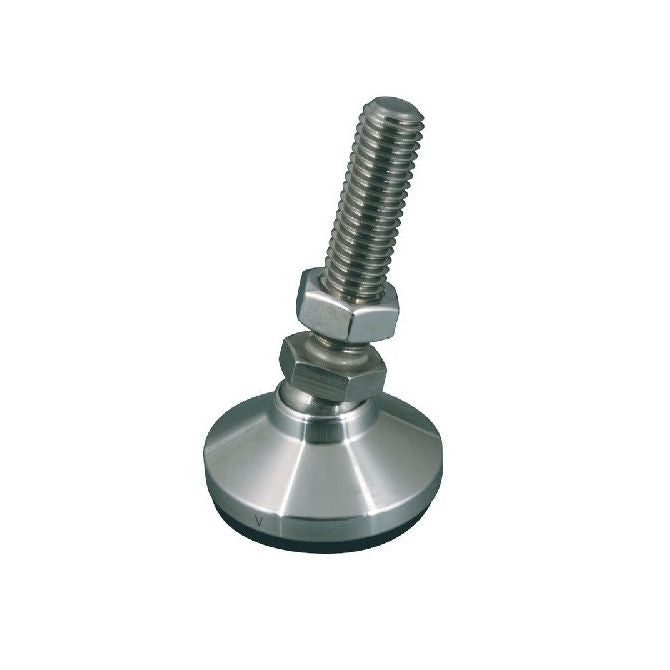

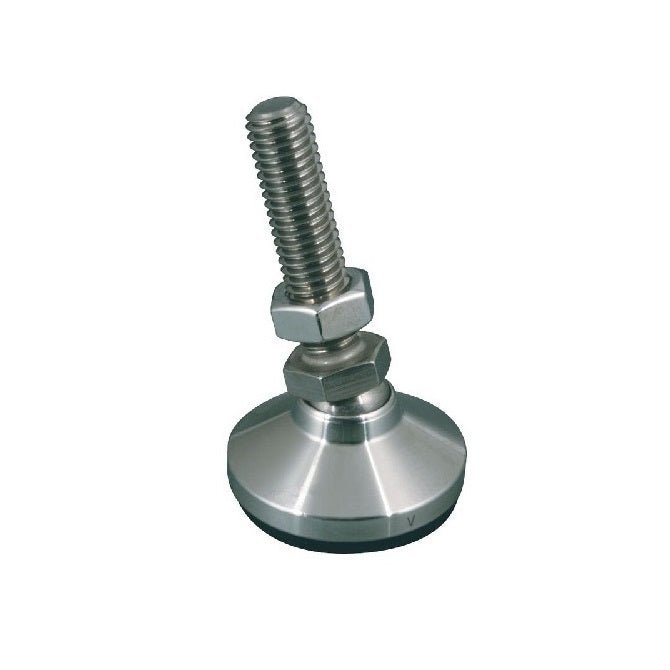

Mounts - Levelling Studded - Standard - 303 Stainless303 Stainless Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. 303 stainless steel.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data

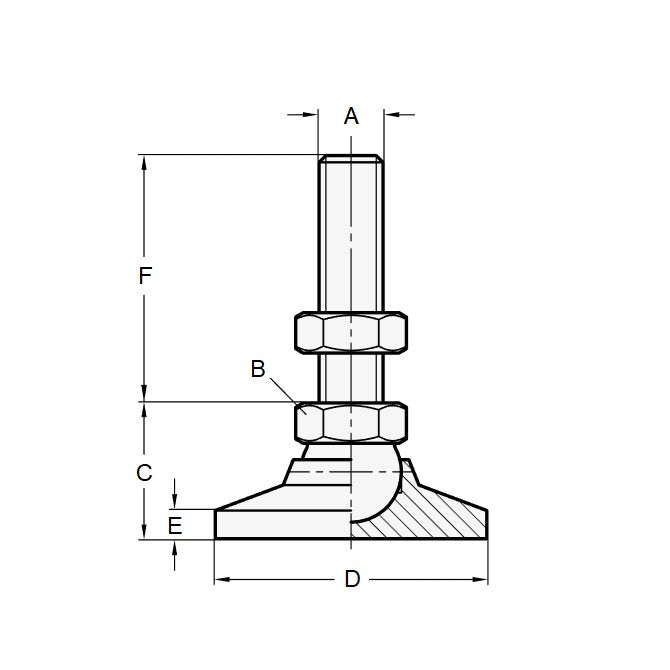

- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
38.1
mm
(Equiv. 1.5 in.) - Thread Length (F) 101.6 mm
- Base Height (E) 12.70 mm
- Overall Height 139.7 mm
- Load Rating 3270 Kg
- Hex Flats (B) 26.988 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MLM3270191CLS3
- HVTL35SS
- HVTL-35SS
