MSF-127C-S3AP - Datasheet
MBA
Category Information

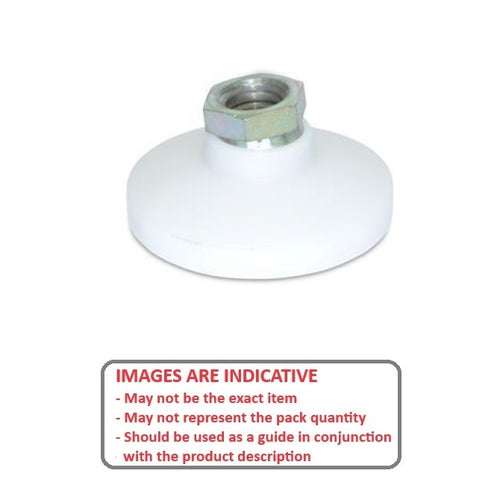

Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base303 Stainless Acetal Base Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D)
47.6
mm
(Equiv. 1.874 in.) - Foot Height (C)
28.6
mm
(Equiv. 1.126 in.) - Min. Thread Depth 11.2 mm
- Base Height (E) 6.35 mm
- Load Rating 315 Kg
- Pad Material Delrin
- Hex Flats (B) 19.05 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSF0320127C36
- LD-1SS
- LD1SS
