TB-12-55BF - Datasheet
MBA
Category Information

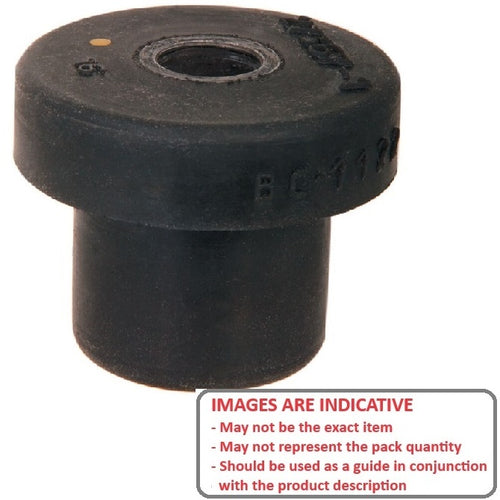

Mounts - Bonded - Tee Bush Centre BoltTee Bush Centre Bolt Bonded Mounts. Vibration isolation for mobile and static applications involving plate clamping
- An expanded range may be available on special order. Please enquire.
- Reduces structure borne noise and absorbs shock forces
- Low profile height
Product Data
- Max Static Load : 50 kg

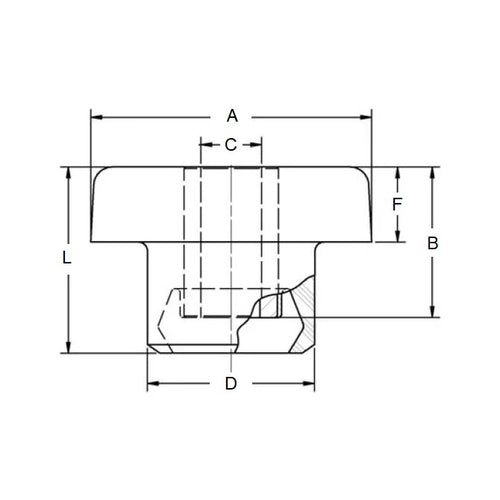

- Bolt Hole Diameter (C)
10.2
mm
(Equiv. 0.402 in.) - Flange Diameter (A)
31.8
mm
(Equiv. 1.252 in.) - Flange Width (F) 14.0 mm
- Shoulder Diameter (D) 24.1 mm
- Overall Length (B) 35.0 mm
- Durometer Hardness 55
- Material Neoprene Rubber and Steel
