CS-3175-9144-31-M - Datasheet
MBA
Category Information

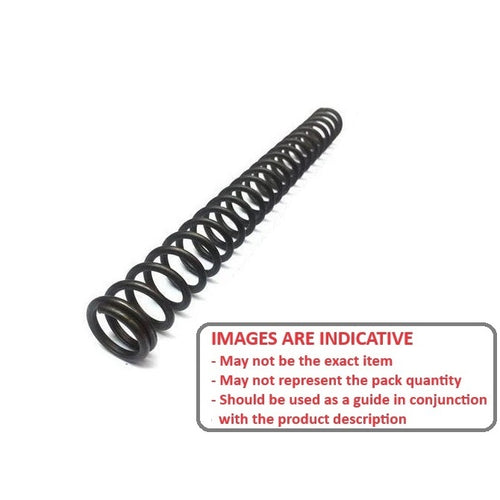

Springs - Compression - Music WireMusic Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
31.75
mm
(Equiv. 1.25 in.) - Free Length (L0)
914
mm
(Equiv. 35.984 in.) - Wire Diameter (d)
3.07
mm
(Equiv. 0.121 in.) - Rate (P/f) 15.4 N/mm
- Approx. ID 25.6 mm
- End Type Closed
- Material Music Wire
Product Compliance and Data
Additional Resources
Cross References
- 9662K46
- S228
- S-228
