CCI-03175-S15 - Datasheet
MBA
Category Information

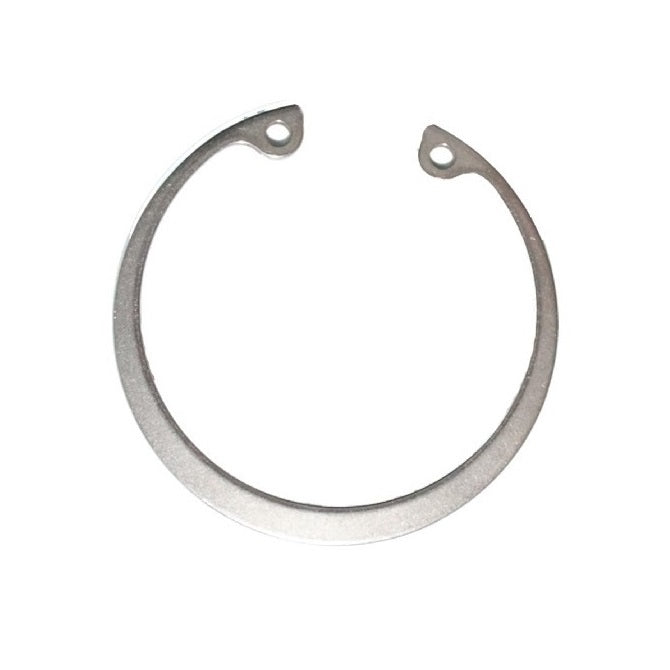

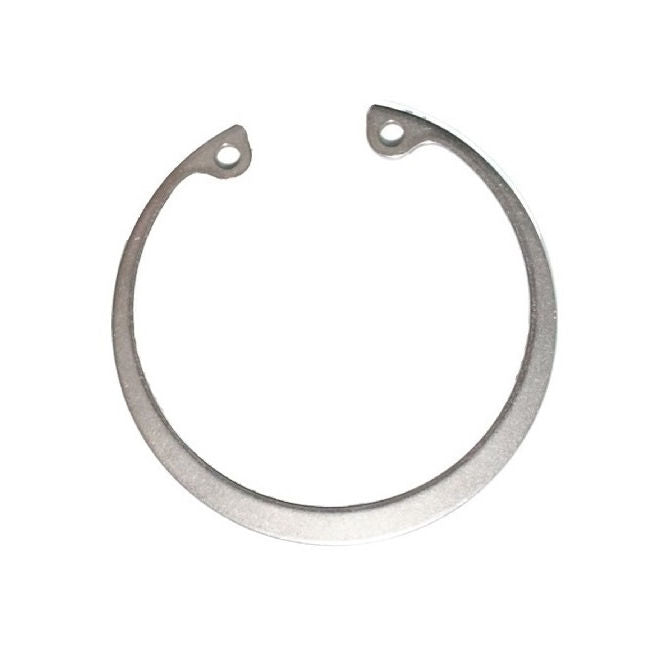

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
31.75
mm
(Equiv. 1.25 in.) - Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.) - Groove Dia. (Dg)
33.72
mm
+ 0.00 / - 0.06
(Equiv. 1.328 in.) - Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38
- Groove Width (W) 1.42 mm + 0.10 / - 0.00
- Clearance in Bore (C) 22.35 mm
- Clearance in Groove (C1) 24.13 mm
- Min. Lug Diameter (h) 1.93 mm
- Min. Extension (n) 3.05
- Standard MIL-16625
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 91580A231
- NoCor HO-125-SS
- HO125SS
- N13000125BDS
- N1300-0125BDS
