Miniature Bearings Australia
T-0318-0595-BND - Datasheet
MBA
Category Information

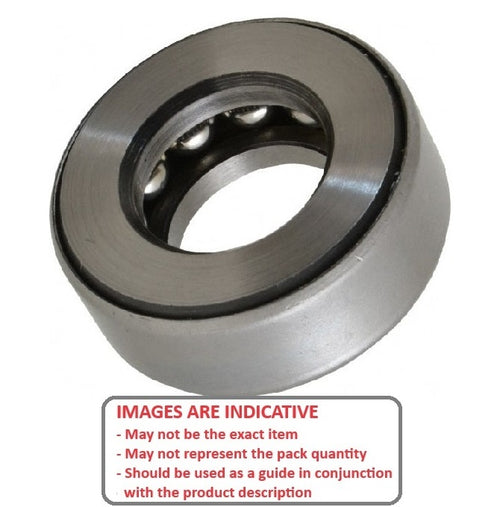

Bearings - Thrust Ball - BandedBanded Thrust Ball Bearings. 3 Piece Thrust Bearings Banded Type
- Thrust ball bearings provide for axial loads. They are designed to handle forces that push or pull along the axis of a rotating shaft
- Commonly used in automotive, electric motors, marine propulsion, pumps and compressors, aerospace applications, industrial machinery, and wind turbines.
- An expanded range may be available on special order. Please enquire.

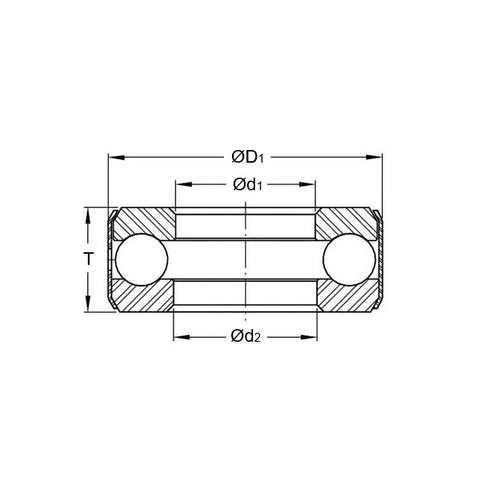

Product Data
- Shaft Diameter (d1) : 31.750 mm
- O.D. (D1) 59.538 mm
- Thickness (T) 15.875 mm
- Bore (d2) 32.540 mm
- Dynamic Load Capacity 3214 kgf
- Static Load Capacity 7009 kgf
- Max. Speed 3200 RPM
- Information Unground Banded Thrust Bearing
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 60715K27
- NICE® 616-V
- Reid Tool® SKF-9110
- S9912Y-TB125234
- S9912YTB125234
- SKF9110
- 616V
