RNAST25 - Datasheet
MBA
Category Information

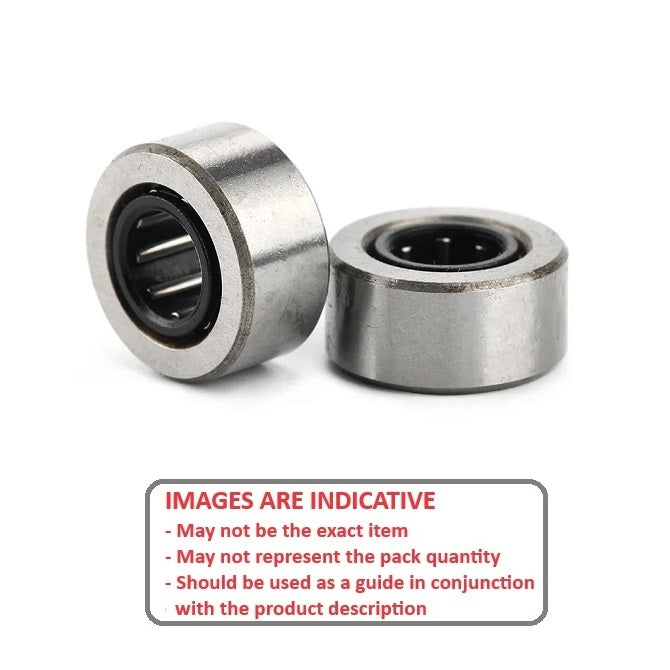

Rollers - Track - Without Inner raceWithout Inner race Track Rollers. This is the main category in this series
Product Data

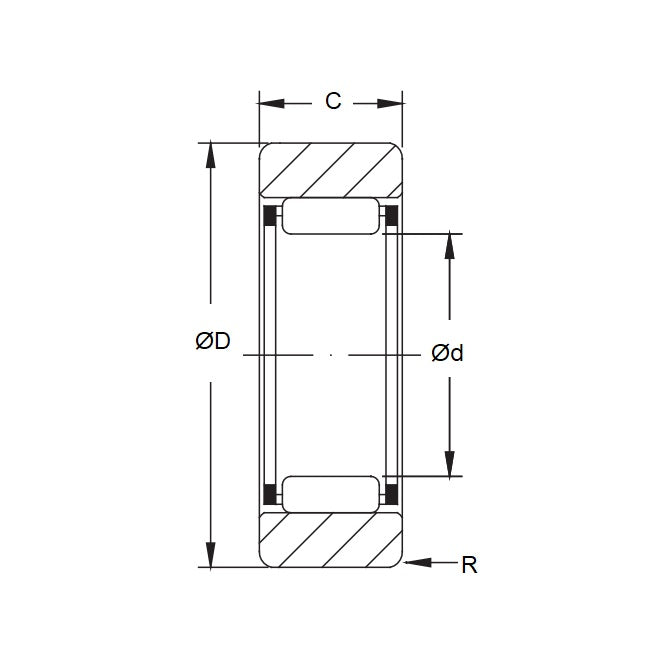

- ID (d)
:
30.00
mm
(Equiv. 1.181 in.) - OD (D)
52.00
mm
(Equiv. 2.047 in.) - Width (C)
15.80
mm
(Equiv. 0.622 in.) - Inner Ring Width (B) 16.00 mm
- OD Type Cylindrical
- Dynamic Load Rating 2120.00 kgf
- Static Load Rating 2890.00 kgf
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi RNAST-25
- RNAST25
