IP-132RS - Datasheet
MBA
Category Information

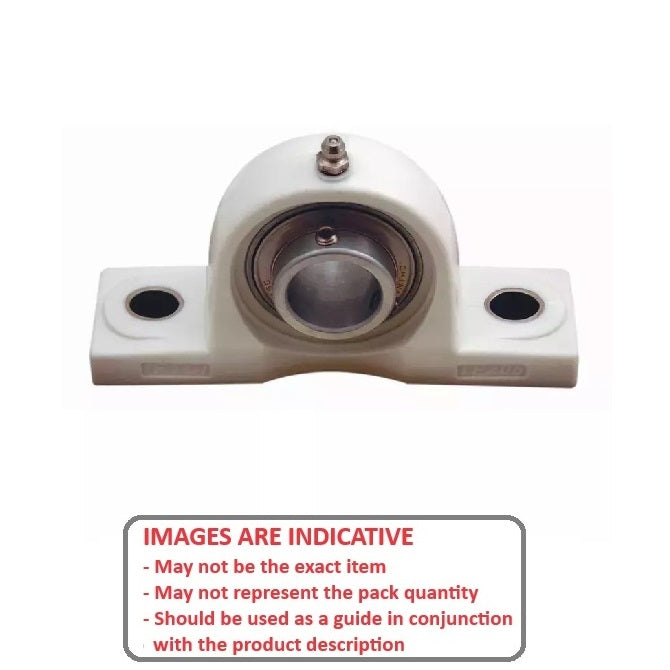

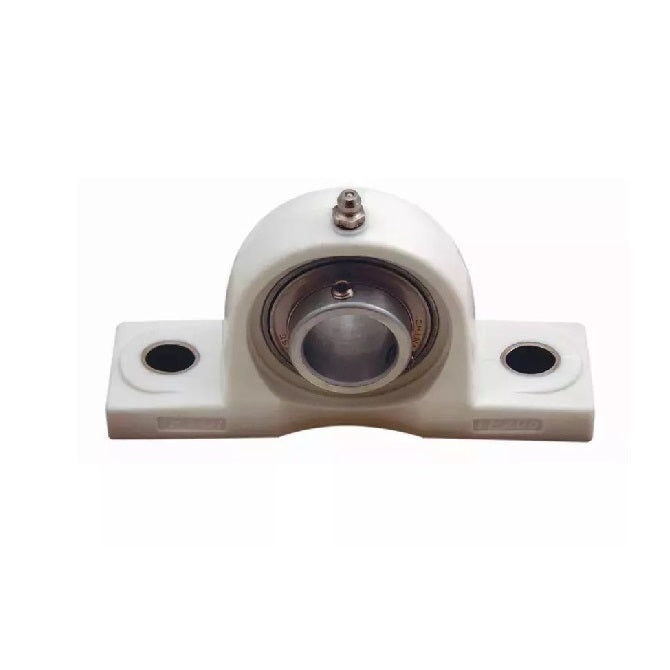

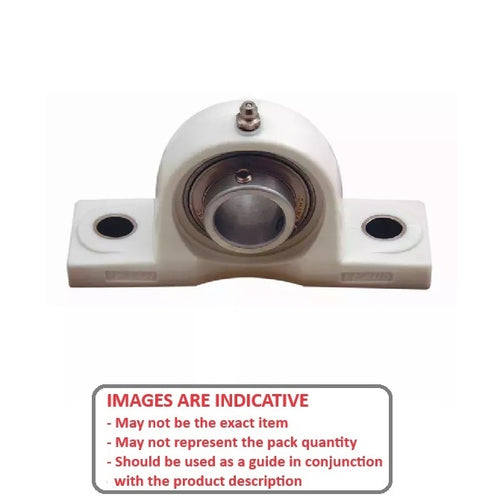

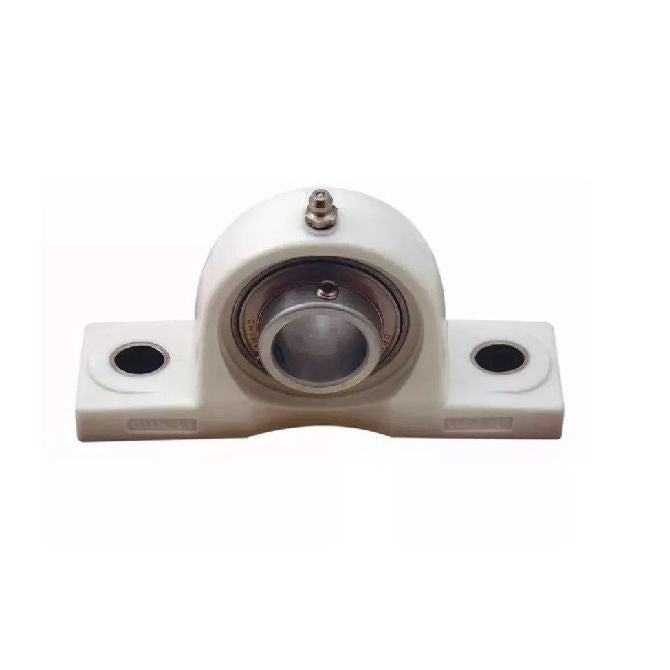

Housing and Bearing Assembly - Pillow Block - Thermoplastic and StainlessThermoplastic and Stainless Pillow Block Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- Food grade.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
- Bearings are 440C stainless steel. Bushings and grease fittings are 300 grade stainless steel.
Product Data
- Inside Diameter
:
30.000
mm

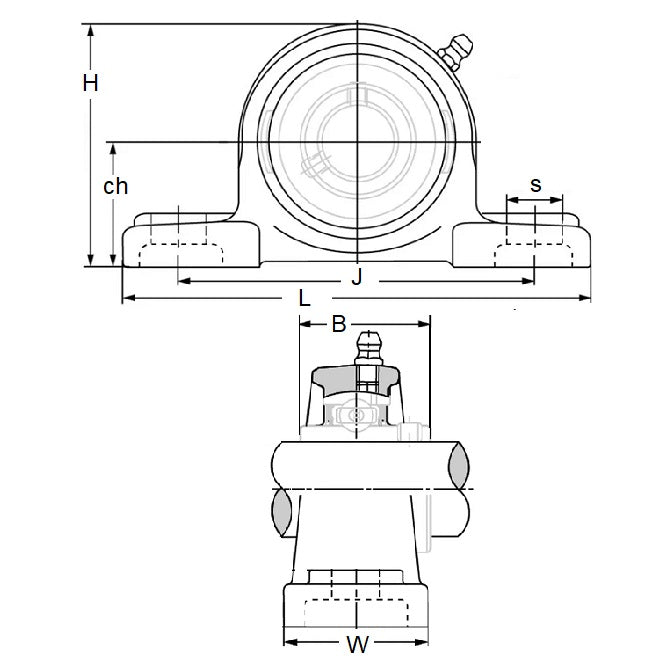

(Equiv. 1.181 in.) - Centre Height (A)
42.900
mm
(Equiv. 1.689 in.) - Length (B)
163.000
mm
(Equiv. 6.417 in.) - Width (C) 46.000 mm
- Foot Height (D) 18.000 mm
- Bolt Centres (E) 119.000 mm
- Bolt Hole Size (G) 18.256 mm
- Height (H) 84.000 mm
- K 22.200 mm
- L 22.200 mm
