Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.

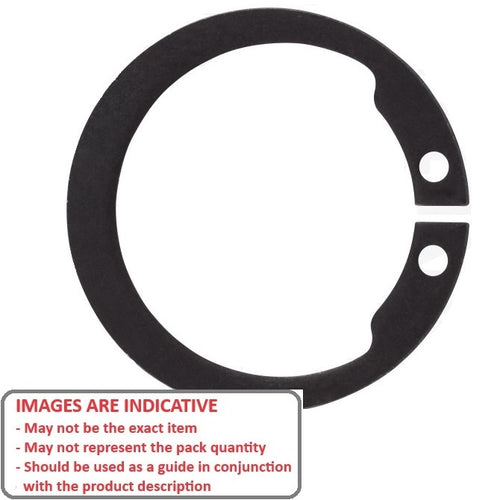

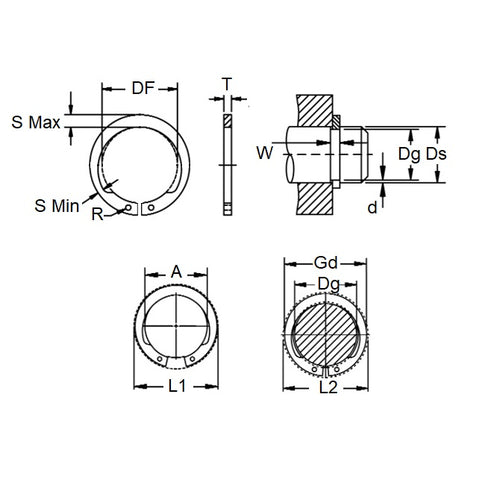

- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.
Product Data
- Shaft Diameter (Ds)
:
30.16
mm
(Equiv. 1.187 in.) - Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.) - Groove Dia. (Dg)
28.40
mm
+/- 0.051
(Equiv. 1.118 in.) - Approx. Loose Circlip ID (A) 27.89 mm
- Radial Wall (S) min/max 1.93 mm
- Groove Width (W) 1.42 mm + 0.10 / - 0.00
- Material Carbon Steel
