REM-300-L-CB-BALL - Datasheet
MBA
Category Information

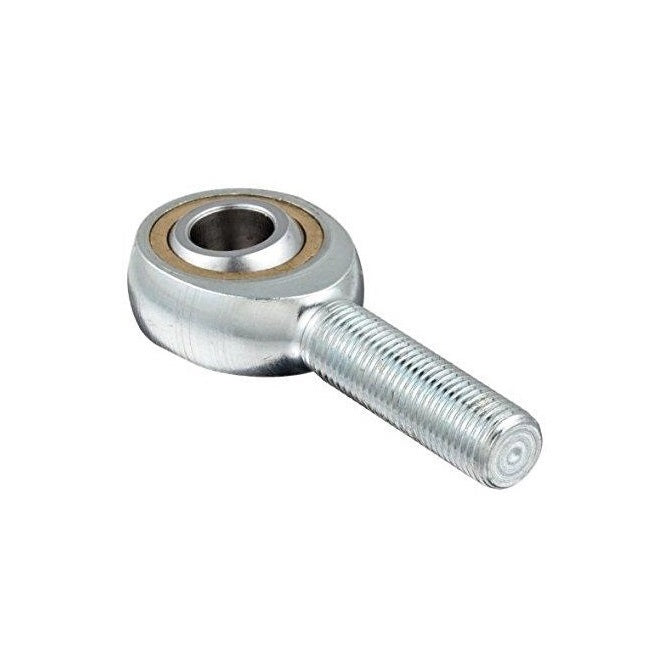

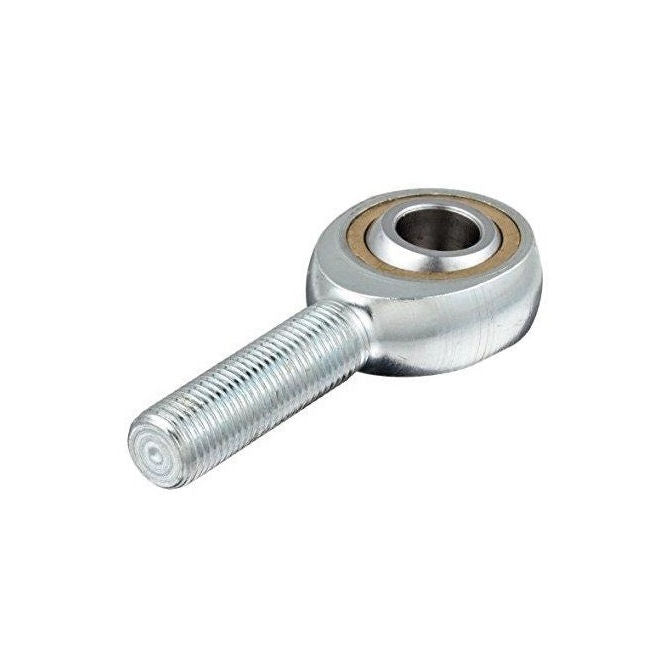

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

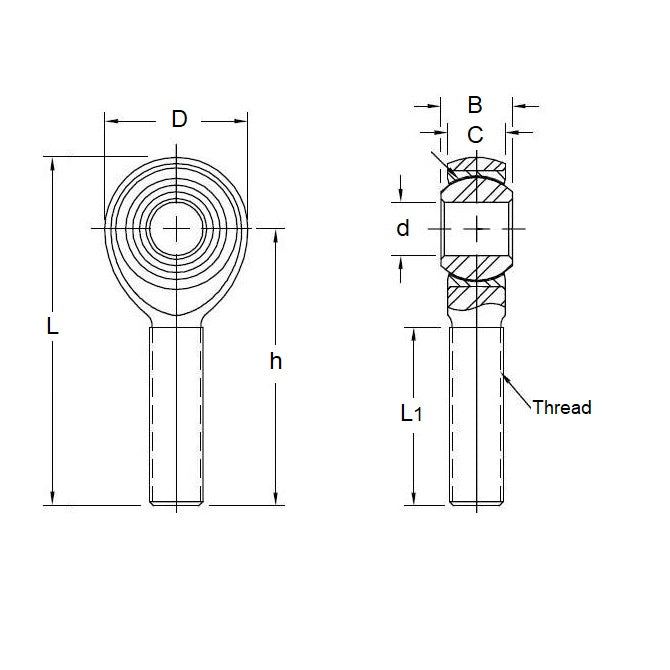

Product Data
- Eye Size (d1)
:
30
mm
(Equiv. 1.181 in.) - Overall Length (L)
143.50
mm
(Equiv. 5.65 in.) - Thread Size M30x2 Left
- Min. Thread Length (l2) 66.00 mm
- Head Width (W) 25.00 mm
- Eye Width (W1) 37.00 mm
- Head Diameter (D) 67.00 mm
- Centre Height (l1) 110.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- ASAHI JAM30L
- KWK KM30L
- IKO POS30L
- Nachi POS-30L
- NTN SMI-30L
- SMI30L
