Miniature Bearings Australia
PLST-095C-221-PC-054 - Datasheet
MBA
Category Information

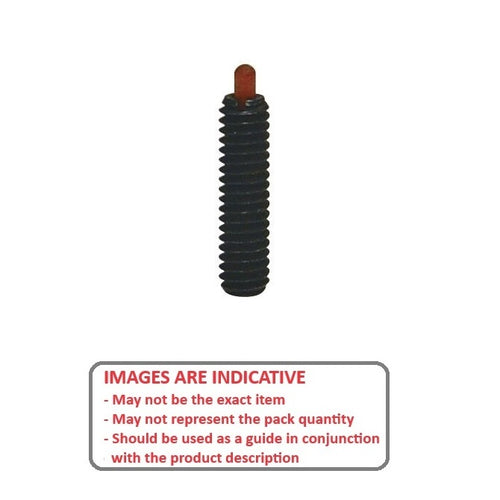

Plungers - Spring - No Handle - Steel - Plastic NosePlastic Nose Steel No Handle Spring Plungers. Plastic nose with steel body
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (B)
22.1
mm
(Equiv. 0.87 in.) - Initial Pressure (F1) 9.8 N
- Final Pressure (F2) 54.1 N
- Tip Diameter (D) 4.1 mm
- Tip Length (C) 3.1 mm
- Body Length (B) 22.1 mm
- Drive 3.18mm Hex
- Material Steel Body with Plastic
Product Compliance and Data
Additional Resources
Cross References
- KBP-413
- KBP413
