PLST-095C-427-HTSL-018 - Datasheet

MBA

Category Information

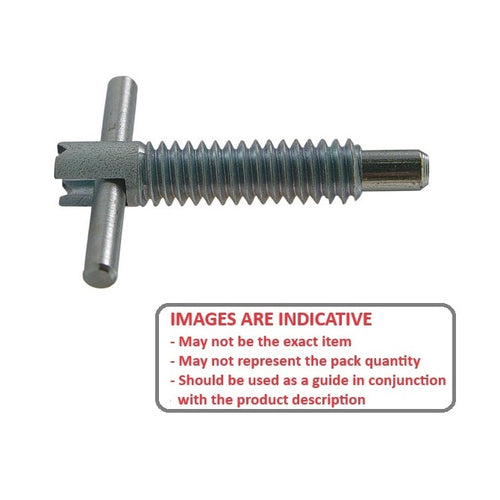

Plungers - Spring - Tee Handle - Locking - Stainless

Stainless Locking Tee Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

  • Thread Size (A) : 3/8-16 UNC (9.53mm)
  • Thread Length (B) 30.5 mm
    (Equiv. 1.201 in.)
  • Initial Pressure (F1) 8.9 N
  • Final Pressure (F2) 17.8 N
  • Tip Diameter (D) 5.9 mm
  • Tip Length (C) 9.5 mm
  • Overall Length (B) 42.7 mm
  • Handle Thickness (F) 3.3
  • Thread Length (G) 30.5 mm
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 31265A66
  • SSFRT37
  • SSFRT-37
