PLST-095C-286-S3HX-020 - Datasheet
MBA
Category Information

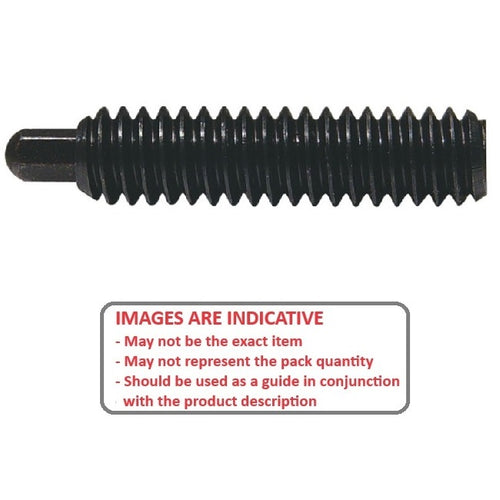

Plungers - Spring - No Handle - Stainless - Hex NoseHex Nose Stainless No Handle Spring Plungers. Stainless Steel body and steel hex nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

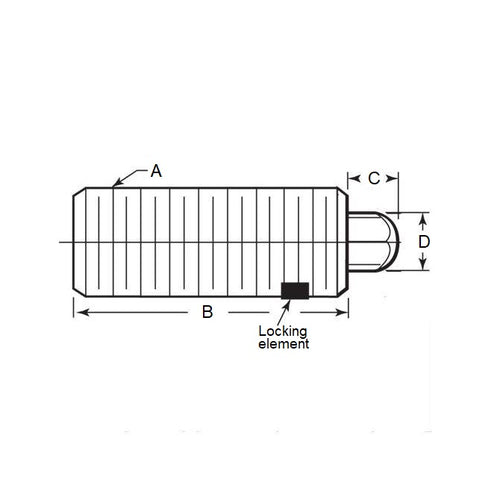

Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (B)
28.6
mm
(Equiv. 1.126 in.) - Initial Pressure (F1) 6.7 N
- Final Pressure (F2) 20.0 N
- Tip Diameter (D) 3.4 mm
- Tip Length (C) 4.8 mm
- Body Length (B) 28.6 mm
- Drive 2.38mm Hex
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- PLST095C254S3020
- SSPH57
- SSPH-57
