PLST-095C-508-HLSL-017 - Datasheet

MBA

Category Information

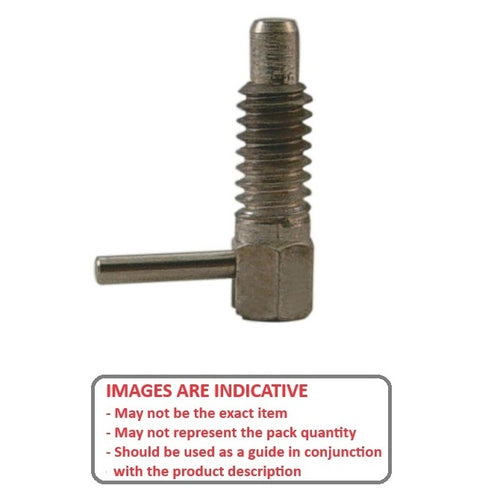

Plungers - Spring - L Handle - Locking - Stainless

Stainless Locking L Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

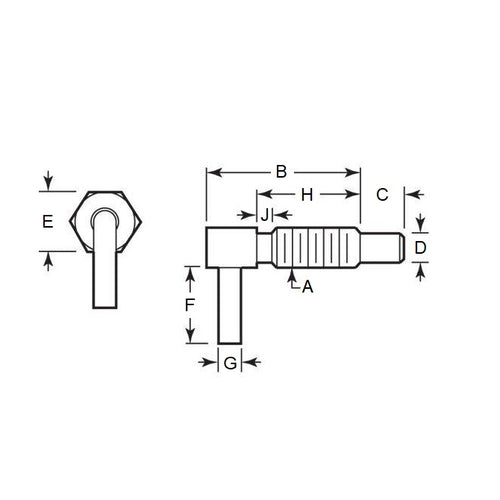

  • Thread Size (A) : 3/8-16 UNC (9.53mm)
  • Thread Length (B) 30.0 mm
    (Equiv. 1.181 in.)
  • Initial Pressure (F1) 3.3 N
  • Final Pressure (F2) 16.7 N
  • Tip Diameter (D) 6.4 mm
  • Tip Length (C) 14.2 mm
  • Body Length (B) 50.8 mm
  • Handle Diameter (G) 3.6 mm
  • Handle Length (F) 19.1 mm
  • J 3.3
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 3403A21
  • SSFR-37
  • SSFR37
