PLST-095C-160-RC-013 - Datasheet

MBA

Category Information

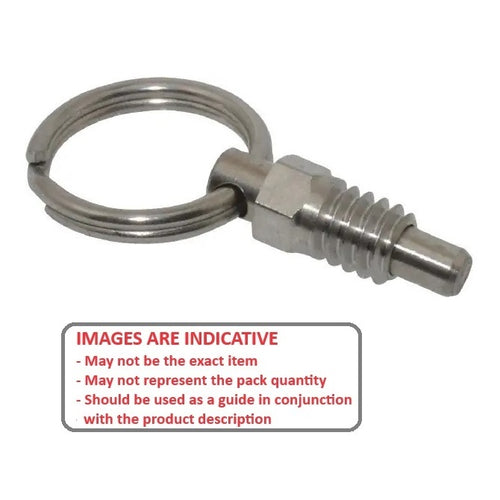

Plungers - Spring - Ring Handle - Non Locking - Steel

Steel Non Locking Ring Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

Product Data

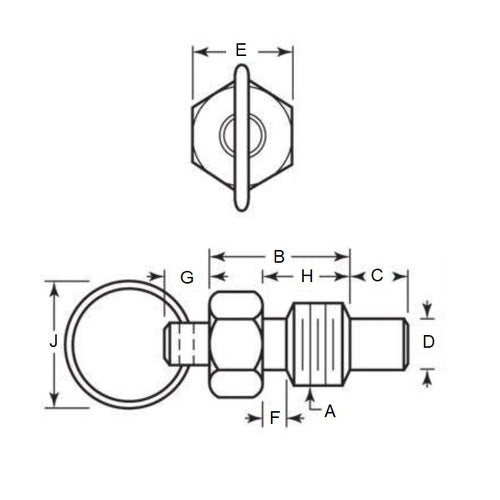

  • Thread Size (A) : 3/8-16 UNC (9.53mm)
  • Thread Length (B) 7.9 mm
    (Equiv. 0.311 in.)
  • Initial Pressure (F1) 3.3 N
  • Final Pressure (F2) 13.4 N
  • Tip Diameter (D) 6.4 mm
  • Tip Length (C) 7.1 mm
  • Body Length (B) 16.0 mm
  • Across Flats (E) 9.7 mm
  • F 3.3 mm
  • G 4.8 mm
  • Thread Length (H) 11.2 mm
  • Ring Diameter (J) 19.1
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 8487A26
  • PRSN375
  • PRSN-375
