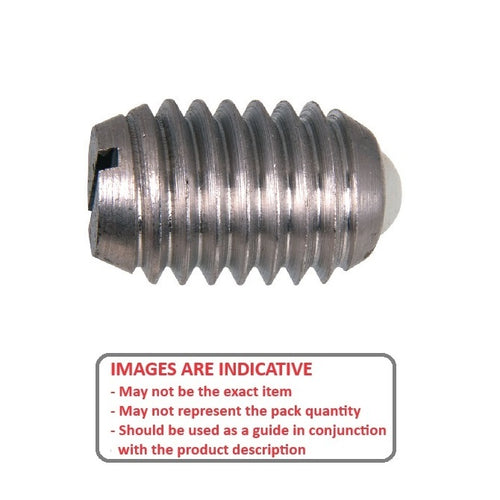

PLST-095C-159-AS-082 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Stainless - Acetal Nose

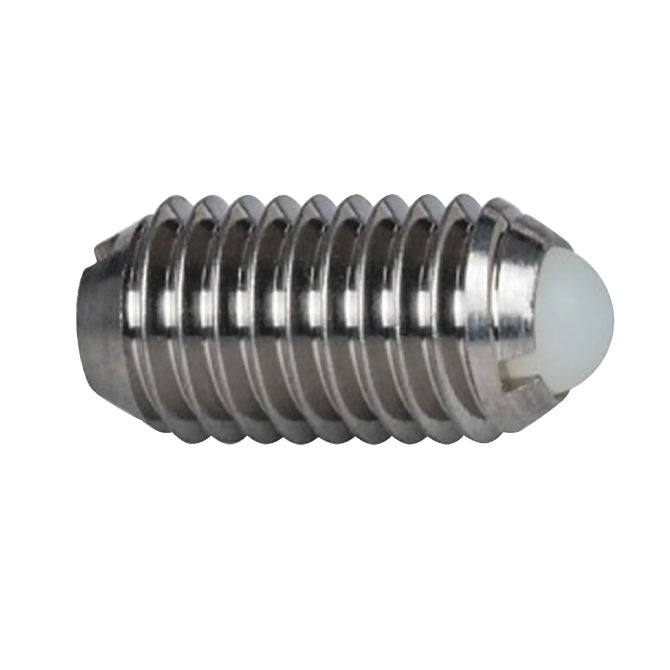

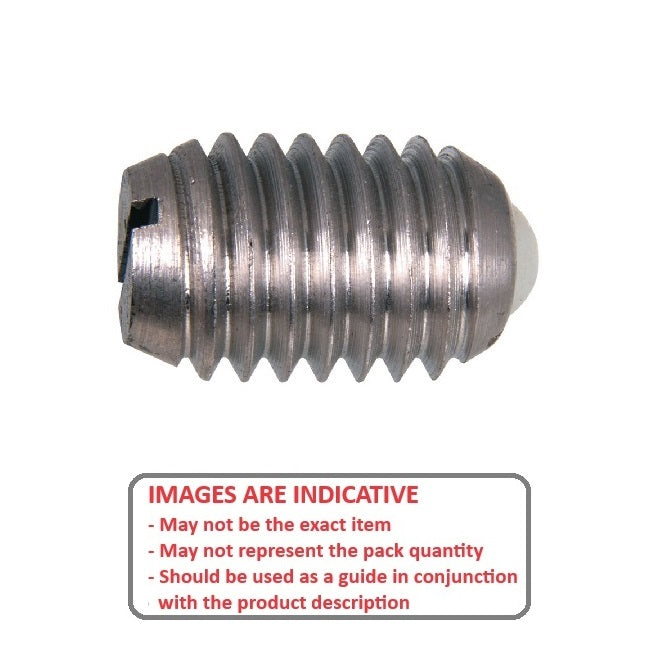

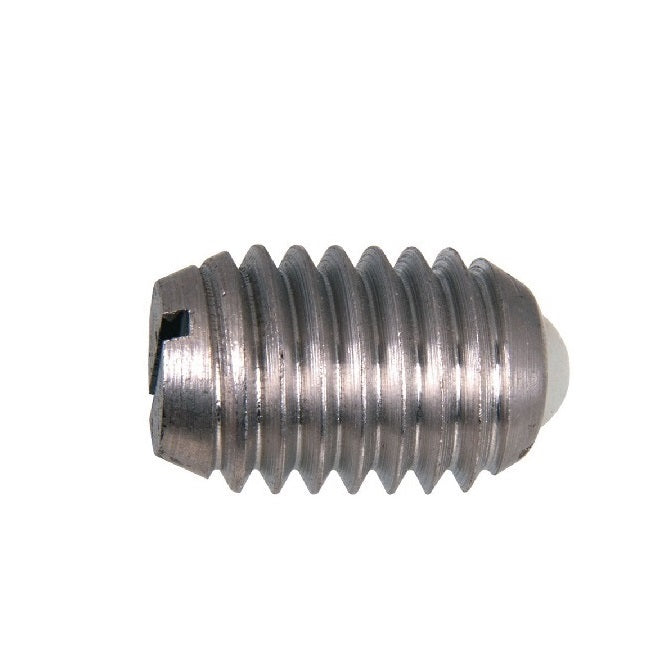

Acetal Nose Stainless No Handle Spring Plungers. 303 Stainless Steel body and acetal nose

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

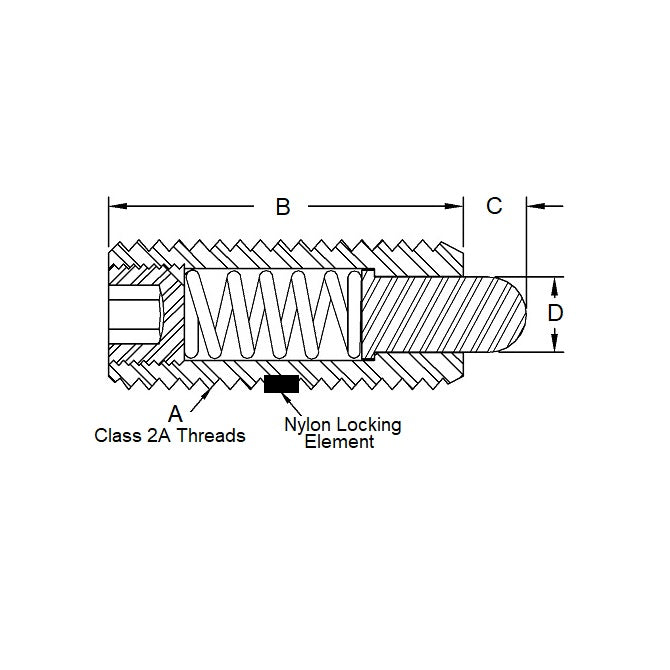

  • Thread Size (A) : 3/8-16 UNC (9.53mm)
  • Thread Length (B) 15.9 mm
    (Equiv. 0.626 in.)
  • Initial Pressure (F1) 20.0 N
  • Final Pressure (F2) 82.3 N
  • Tip Diameter (D) 4.7 mm
  • Tip Length (C) 2.8 mm
  • Body Length (B) 15.9 mm
  • Drive Slotted
  • Material Stainless Steel Body with Acetal
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 84765A107
  • NK-5S
  • NK5S
