PLST-095C-159-AC-082 - Datasheet
MBA
Category Information

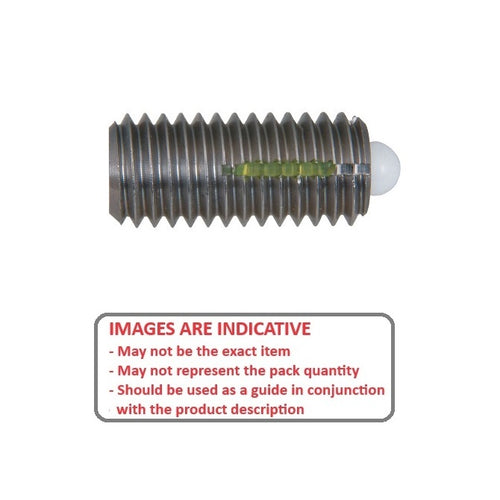

Plungers - Spring - No Handle - Steel - Acetal NoseAcetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (B)
15.9
mm
(Equiv. 0.626 in.) - Initial Pressure (F1) 20.0 N
- Final Pressure (F2) 82.3 N
- Tip Diameter (D) 4.7 mm
- Tip Length (C) 2.8 mm
- Body Length (B) 15.9 mm
- Drive Slotted
- Material Steel Body with Acetal Nose
Product Compliance and Data
Additional Resources
Cross References
- NK-5
- NK5
