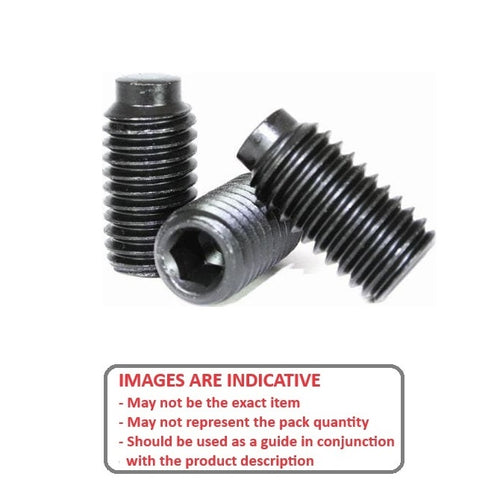

SS095C-0191-AS-HDP - Datasheet

MBA

Product Data

• Thread Size : 3/8-16 UNC (9.53mm)
• Thread Length (L) 17.0 mm
  (Equiv. 0.669 in.)
• Type Half Dog Point
• Tip Diameter (d) 6.6 - 7.0 mm
• Tip Length (L1) 2.1 mm
• Pitch 1.588 mm
• Threads Per Inch 16 TPI
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 92505A622
• BRB141166P
• BRB-141166P
