PLST-095C-191-HSL-009 - Datasheet
MBA
Category Information

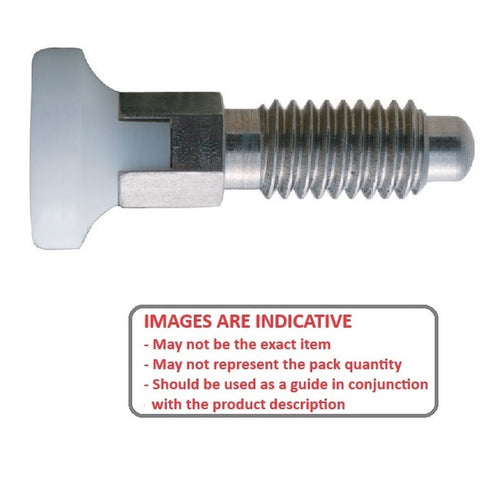

Plungers - Spring - Acetal Handle - Locking - StainlessStainless Locking Acetal Handle Spring Plungers. White acetal plastic handle . 303 stainless steel body and plunger.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

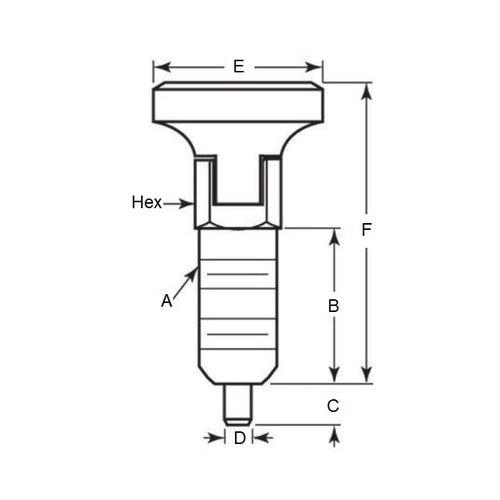

Product Data
- Thread Size (A) : 3/8-16 UNC (9.53mm)
- Thread Length (B)
19.1
mm
(Equiv. 0.752 in.) - Initial Pressure (F1) 1.1 N
- Final Pressure (F2) 8.9 N
- Tip Diameter (D) 6.3 mm
- Tip Length (C) 4.8 mm
- Head Diameter (E) 19.1 mm
- Overall Length (F) 35.6
- Hex 9.5
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- PRT27
- PRT-27
