PLST-095C-191-HCLLK-009 - Datasheet

MBA

Category Information

Plungers - Spring - Acetal Handle - Locking - Steel

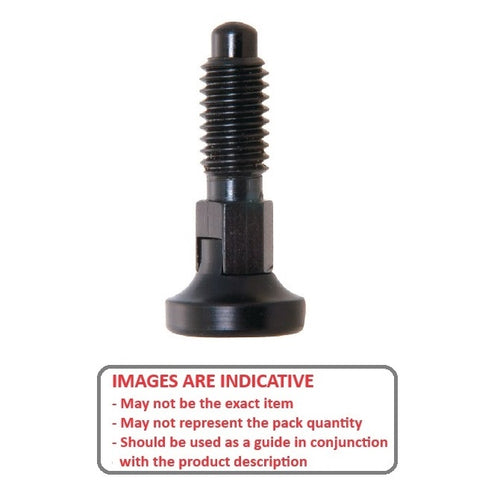

Steel Locking Acetal Handle Spring Plungers. Black acetal plastic handle . Black oxide coated steel body and plunger.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

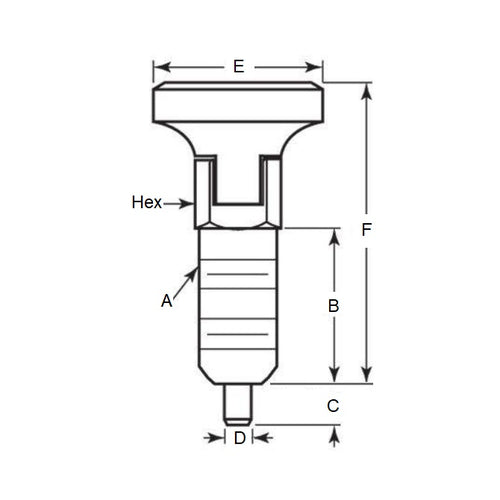

  • Thread Size (A) : 3/8-16 UNC (9.53mm)
  • Thread Length (B) 19.1 mm
    (Equiv. 0.752 in.)
  • Initial Pressure (F1) 1.1 N
  • Final Pressure (F2) 8.9 N
  • Tip Diameter (D) 6.3 mm
  • Tip Length (C) 4.8 mm
  • Head Diameter (E) 19.1 mm
  • Overall Length (F) 35.6
  • Across Flats 9.5
  • Additional With Locking Element
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PRT13N
  • PRT-13N
