IN-RIV-095C-038-R - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Ribbed

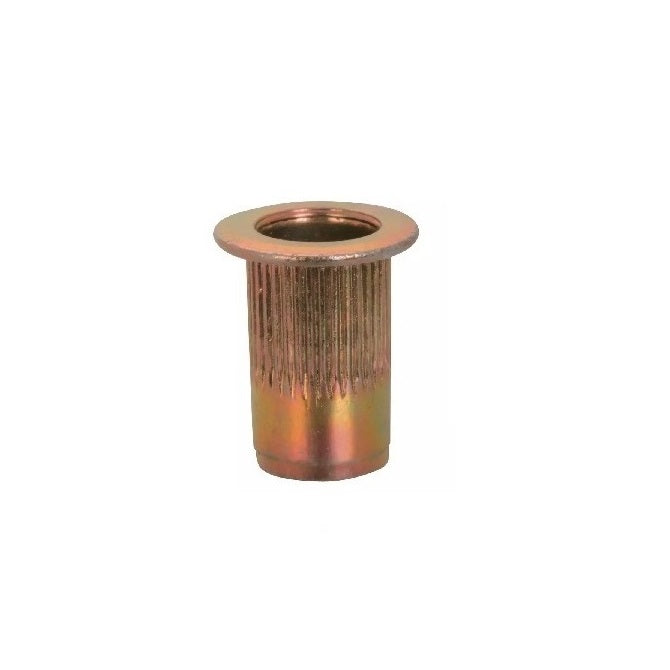

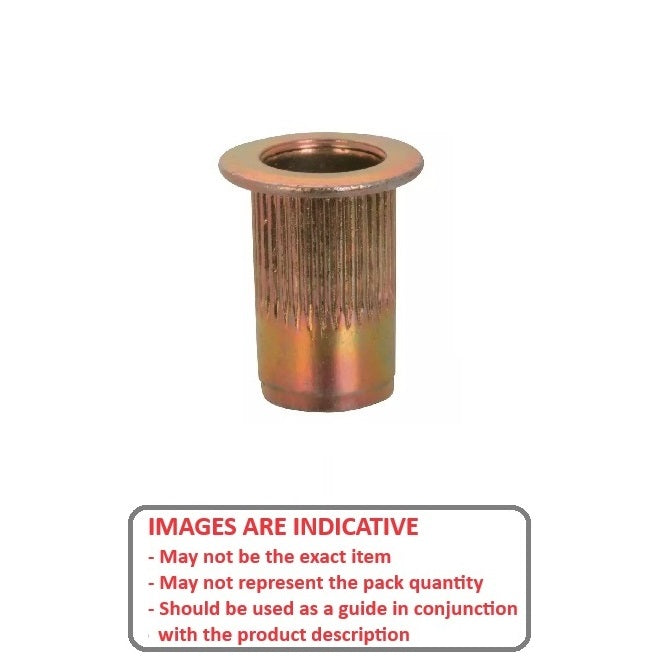

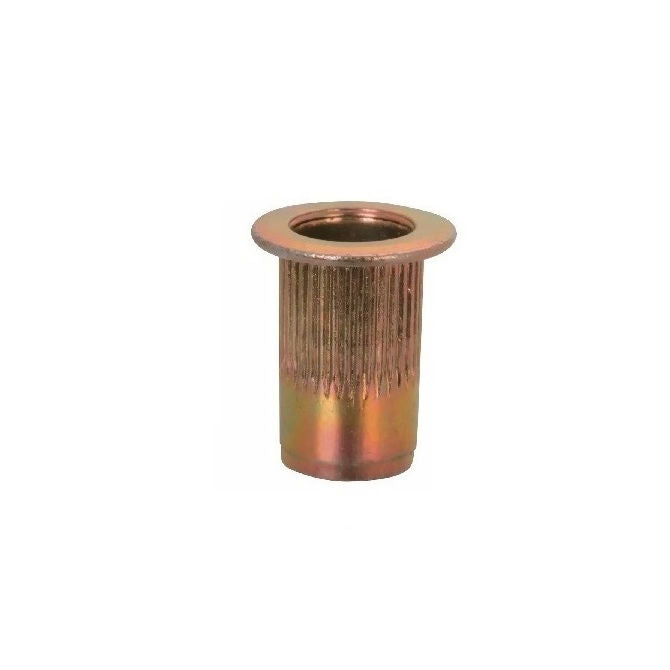

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : 3/8-16 UNC (9.53mm)
  • Drill Hole Size 13.49 mm
    (Equiv. 0.531 in.)
  • Grip Range 0.69 - 3.81 mm
    (Equiv. 0.027 in.)

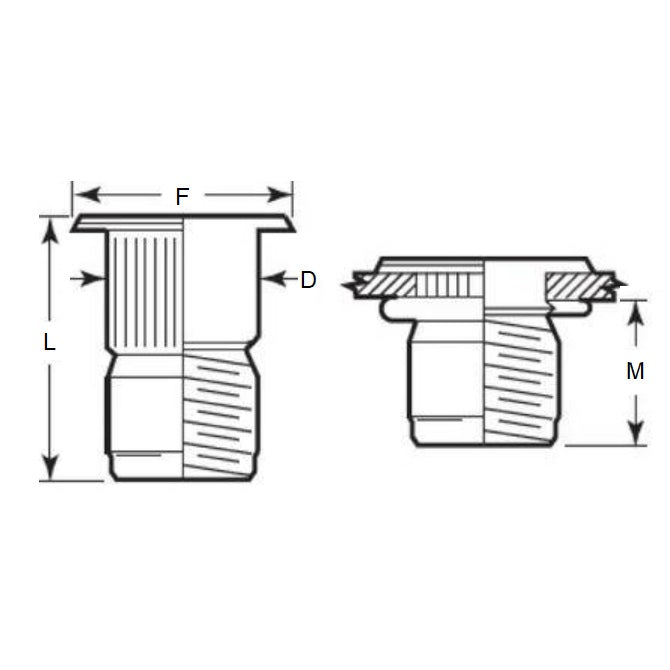

  • Body Diameter (D) 13.46 mm
  • Flange Diameter (F) 17.02 mm
  • L 17.526 mm
  • M 10.922 mm
  • 0.69 - 3.81
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 95105A159
  • ALC47381
  • ALC-47381
