TP-036-0318-S3 - Datasheet
MBA
Category Information

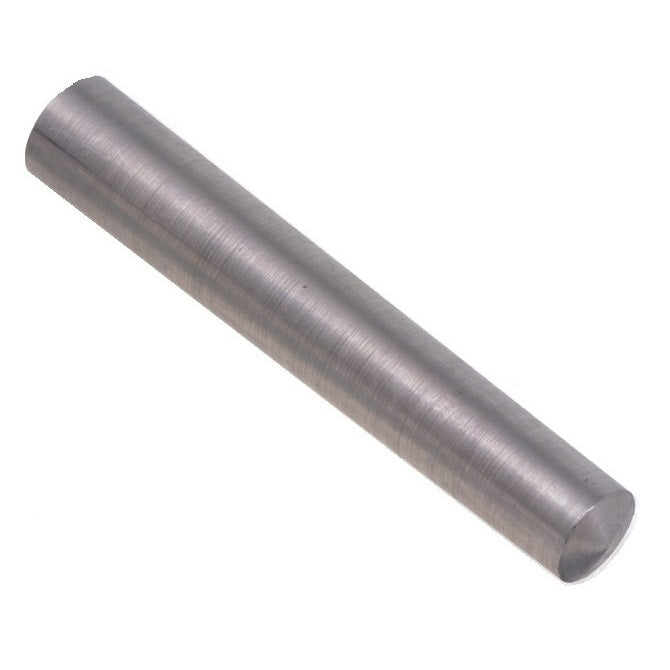

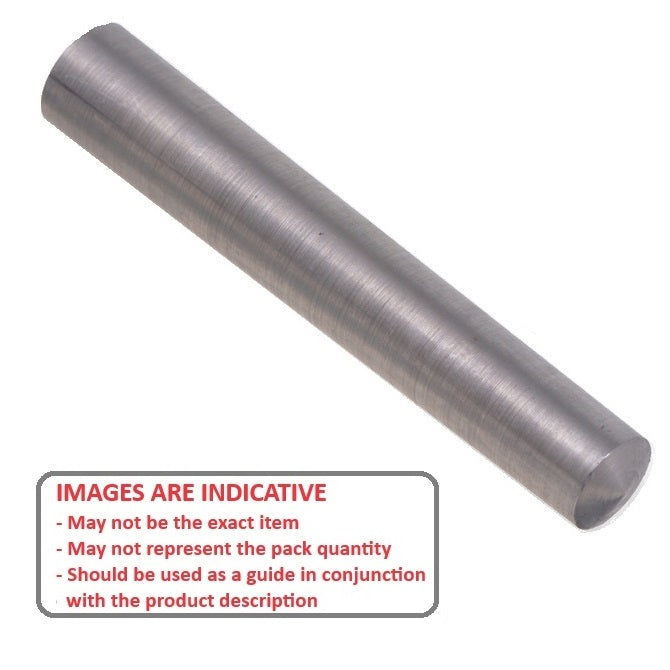

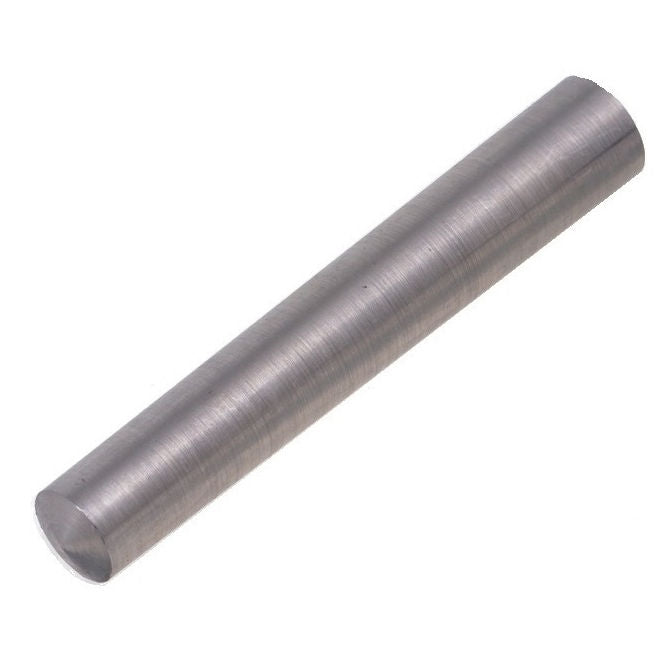

Pins - Taper Imperial - Miniature - Stainless SteelStainless Steel Miniature Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Miniature sizes.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Large End Diameter (D2)
:
3.58
mm
(Equiv. 0.141 in.) - Length (L)
31.75
mm
(Equiv. 1.25 in.) - Nom. Small End Diameter (D)
2.92
mm
(Equiv. 0.115 in.) - Pin Number 2/0
- Material Stainless Steel Grade 303/304 HRB80
Product Compliance and Data
Additional Resources
Cross References
- 90681A132
- NoCor TPS-20-1250
- TPS201250
- S7250Y2040
- S7250Y-2040
