PLBP-030-040-PP-004 - Datasheet
MBA
Category Information

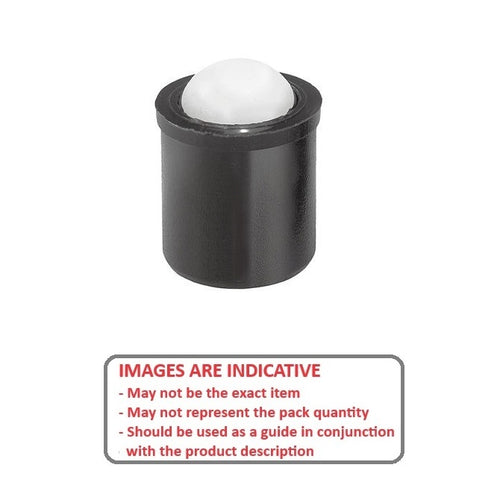

Plungers - Ball Push Fit - Plastic Body - Plastic BallPlastic Ball Plastic Body Ball Push Fit Plungers. Unthreaded. Plastic body and ball.
- Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
- Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
- Ball: W.-Nr 1.4034 (420) Stainless Steel.
- Spring: W.-Nr 1.4310 (301) Stainless Steel.
- Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.
Product Data
- Body Diameter (D)
:
3.00
mm
(Equiv. 0.118 in.) - Length (L)
4.00
mm
(Equiv. 0.157 in.) - Initial Pressure (F1) 2.00 N
- Final Pressure (F2) 4.00 N
- Ball Diameter (D1) 2.38 mm
- Ball Height (H) 0.60 mm
- Shoulder Diameter (S) 3.6 mm
- 3.600
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-PFPPN3-20P
- CPFPPN320P
