SC191F-051-C-SK-CZ - Datasheet
Brighton Best
Category Information

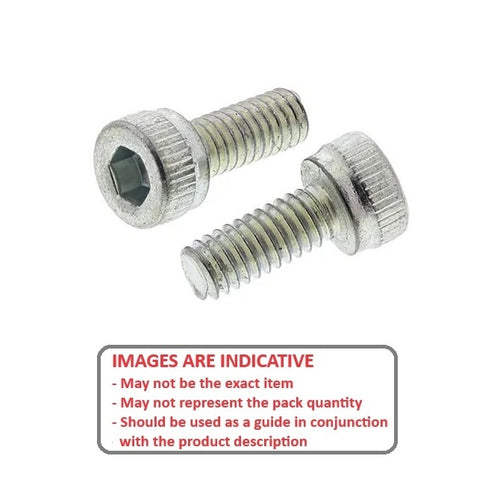

Screws - Socket Cap - Zinc PlatedZinc Plated Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 3/4-16 UNF (19.05mm)
- Thread Length (L)
50.8
mm
(Equiv. 2 in.) - Material Zinc Plated Steel
- Head Length (B Max.) 19.1 mm
- Head Diameter (A Max.) 28.6 mm
- Drive Depth (E) 9.40 mm
- Shank Diameter (C) 18.81 - 19.15 mm
- Hex Key (D) 15.88 (5/8) mm
- Pitch 1.588 mm
- Threads Per Inch 16 TPI
- Min thread Length 50.8 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 872650
