PLST-191C-445-CHX-166 - Datasheet
MBA
Category Information

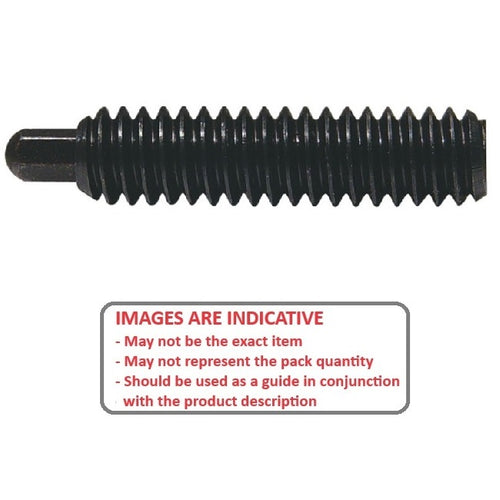

Plungers - Spring - No Handle - Steel - Hex Nose - StandardStandard Hex Nose Steel No Handle Spring Plungers. Steel body and steel hex nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 3/4-10 UNC (19.05mm)
- Thread Length (B)
44.5
mm
(Equiv. 1.752 in.) - Initial Pressure (F1) 29.8 N
- Final Pressure (F2) 165.9 N
- Tip Diameter (D) 9.5 mm
- Tip Length (C) 7.9 mm
- Body Length (B) 44.5 mm
- Drive Hex
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 3360A47
- HN6
- HN-6
