DVAB3-ST-080-303 - Datasheet
MBA
Category Information

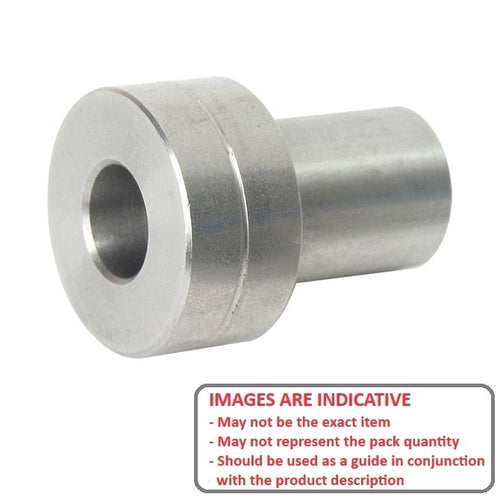

Dual Vee - Adaptor BushingsAdaptor Bushings Dual Vee. Vee grooved track roller bushings.

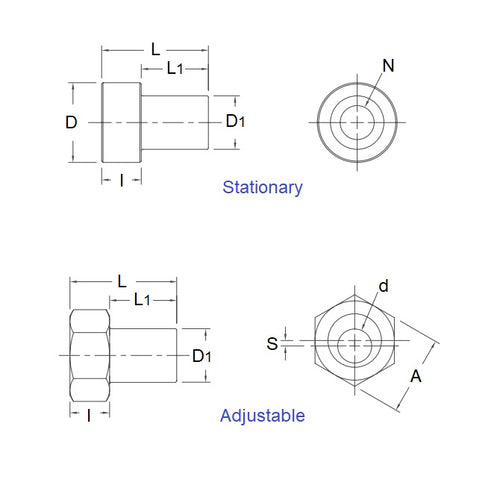

- Stationary bushings have a concentric hole
- Adjustable bushings have an eccentric hole allowing positioning of the guide wheel as the bush is turned
Product Data
- Bushing Size : 3
- Overall Length (L)
25.200
mm
+ 0.000 / - 0.100
(Equiv. 0.992 in.) - Head Width (l)
9.470
mm
+/ - 0.03
(Equiv. 0.373 in.) - Shank Diameter (D1) 12.000 mm + 0.000 / - 0.030
- Diameter / Hex (D or A) 19.100 mm
- Inside Diameter (N or d) 8.10 mm + 0.050 / - 0.000
- Bush Type Stationary
- Head Configuration Round
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Dual Vee MB3SS
