CS-0318-9144-06-M - Datasheet

MBA

Category Information

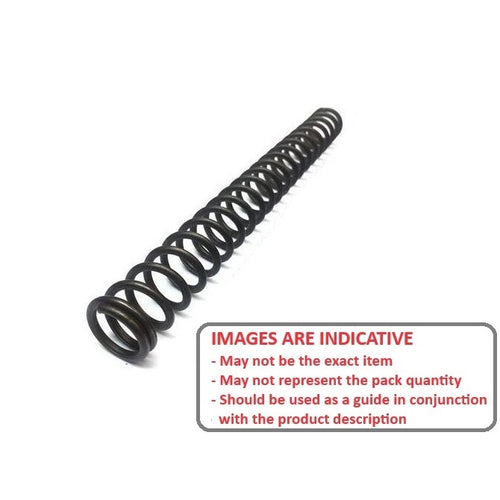

Springs - Compression - Music Wire

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 3.18 mm
    (Equiv. 0.125 in.)
  • Free Length (L0) 914 mm
    (Equiv. 35.984 in.)
  • Wire Diameter (d) 0.58 mm
    (Equiv. 0.023 in.)
  • Rate (P/f) 2.4 N/mm
  • Approx. ID 2.0 mm
  • End Type Closed
  • Material Music Wire
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • S-204
  • S204
