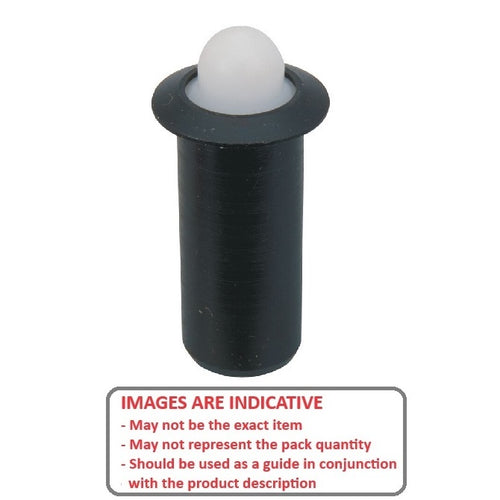

PLSP-032-064-AC-009 - Datasheet

MBA

Product Data

• Body Diameter (A) : 3.18 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.125 in.)
• Body Length (B) 6.4 mm
  (Equiv. 0.252 in.)
• Initial Pressure (F1) 4.5 N
• Final Pressure (F2) 8.9 N
• Tip Diameter (D1) 1.8 mm
• Tip Length (C) 1.6 mm
• Drive Push Fit
• Material Steel Body with Acetal

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• PFP80
• PFP-80
