TP-032-0254-S3 - Datasheet
MBA
Category Information

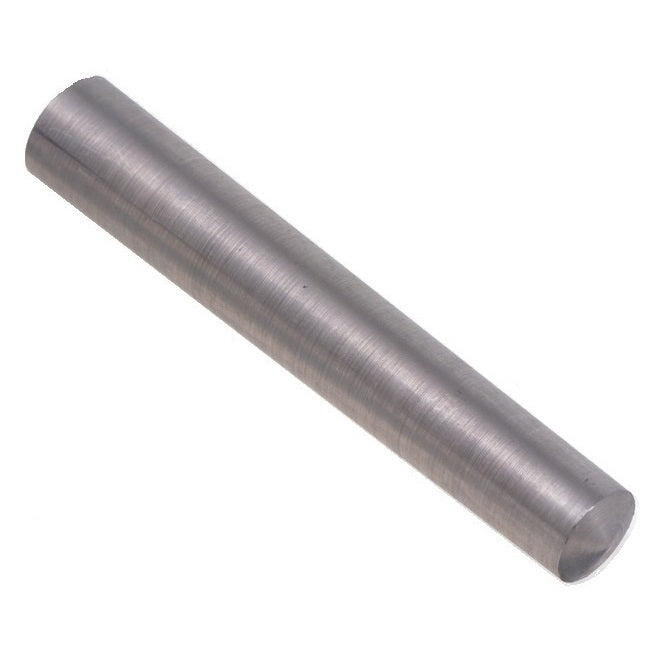

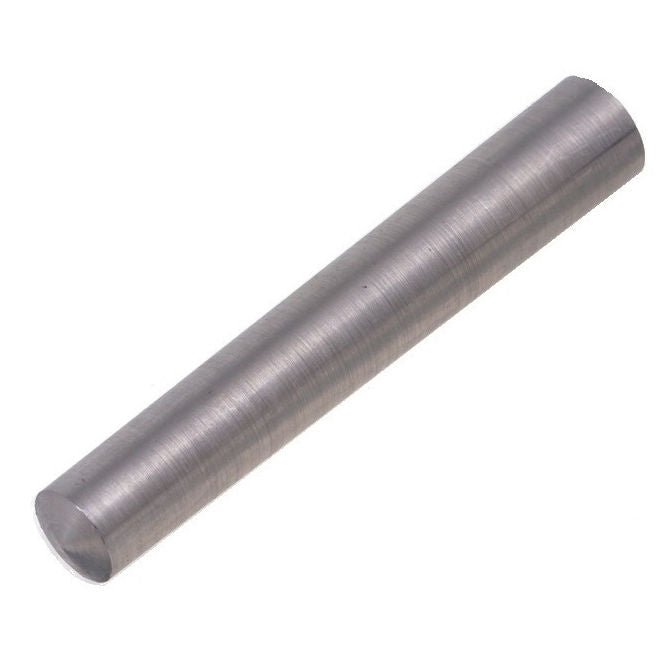

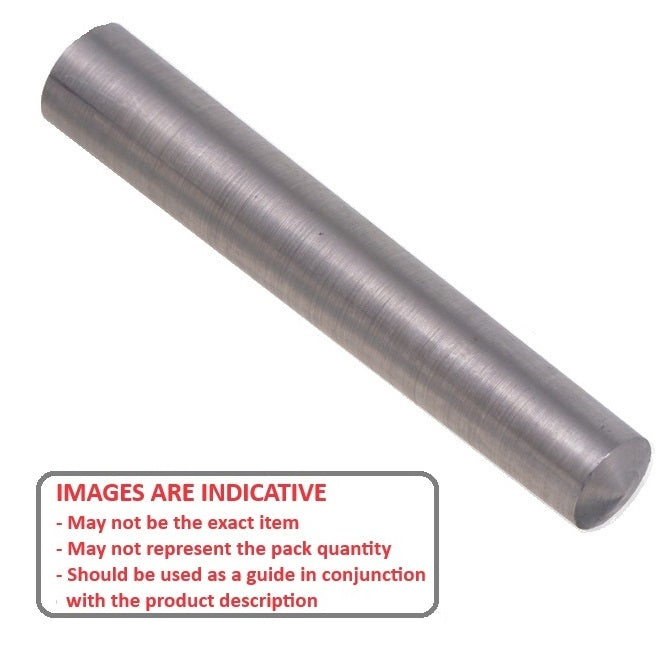

Pins - Taper Imperial - Miniature - Stainless SteelStainless Steel Miniature Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Miniature sizes.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Large End Diameter (D2)
:
3.18
mm
(Equiv. 0.125 in.) - Length (L)
25.40
mm
(Equiv. 1 in.) - Nom. Small End Diameter (D)
2.65
mm
(Equiv. 0.104 in.) - Pin Number 3/0
- Material Stainless Steel Grade 303/304 HRB80
Product Compliance and Data
Additional Resources
Cross References
- 90681A103
- Small Parts DWXT-6316
- NoCor TPS-30-1000
- DWXT6316
- TPS301000
- S7250Y-3032
- S7250Y3032
