PLBP-032-064-S3-011 - Datasheet
MBA
Category Information

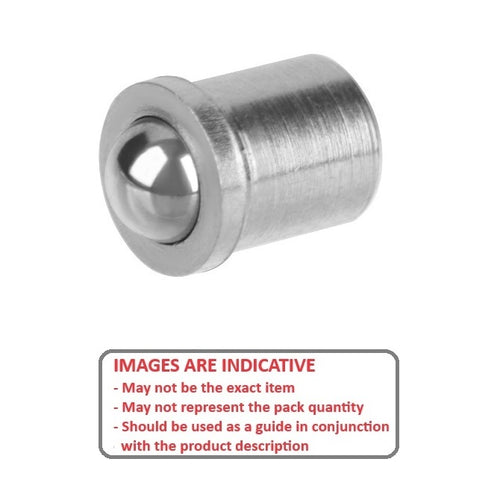

Plungers - Ball Push Fit - Stainless Body - Stainless BallStainless Ball Stainless Body Ball Push Fit Plungers. Unthreaded
- Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
- Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
- Ball: W.-Nr 1.4034 (420) Stainless Steel.
- Spring: W.-Nr 1.4310 (301) Stainless Steel.
- Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.

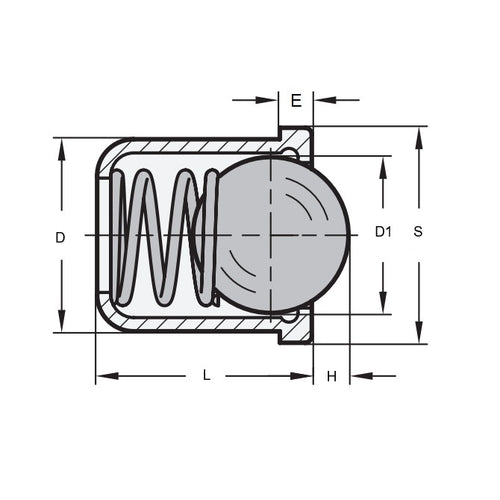

Product Data
- Body Diameter (D)
:
3.18
mm
+ 0.1 / - 0.0
(Equiv. 0.125 in.) - Length (L)
6.4
mm
(Equiv. 0.252 in.) - Initial Pressure (F1) 3.3 N
- Final Pressure (F2) 11.1 N
- Ball Diameter (D1) 2.4 mm
- Ball Height (H) 0.9 mm
- Shoulder Diameter (S) 4.8 mm
- 4.8
- Material Stainless Steel 400 Series Hardened
Product Compliance and Data
Additional Resources
Cross References
- 84895A61
- SPFB48
- SPFB-48
