CNG-00318-06-420-2 - Datasheet
MBA
Category Information

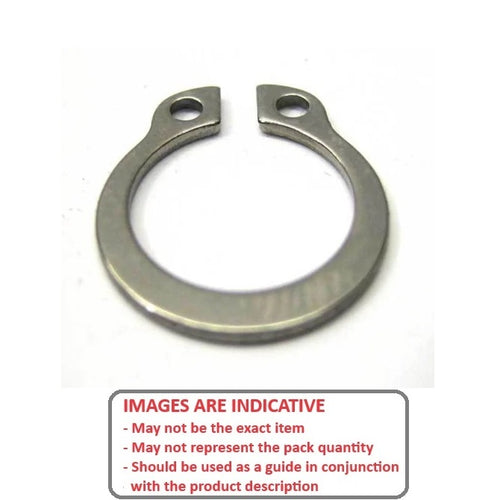

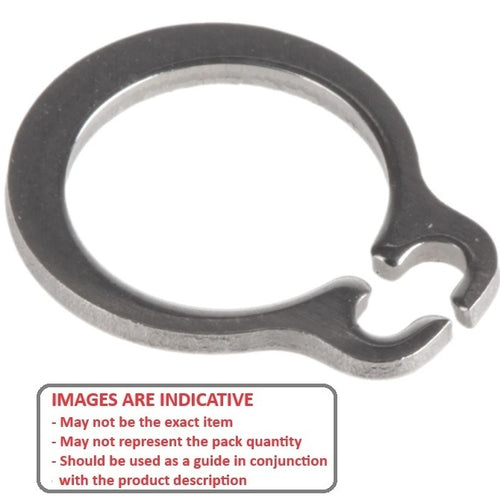

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

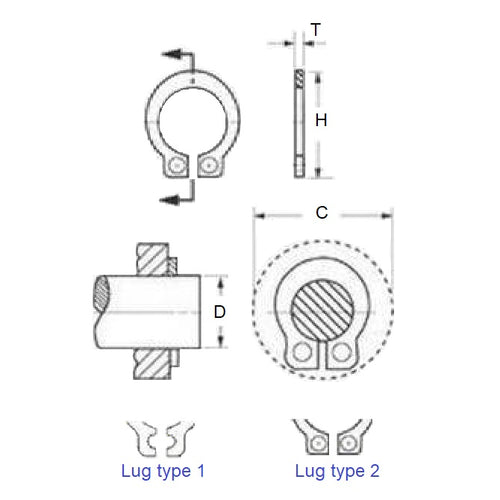

Product Data
- Shaft Diameter (Ds)
:
3.18
mm
+/- 0.05
(Equiv. 0.125 in.) - Clip Thickness (T)
0.64
mm
(Equiv. 0.025 in.) - Approx. Loose Circlip ID (A) 3.05 mm
- Assemb. Clearance on Shaft (C) 8.38
- Allowable Load 41 N
- Lug Type 2 (Closed) mm
- Tool PRS-E040
- Material Stainless Steel AISI 420C
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHF-012-SS
- SHF012SS
