Miniature Bearings Australia

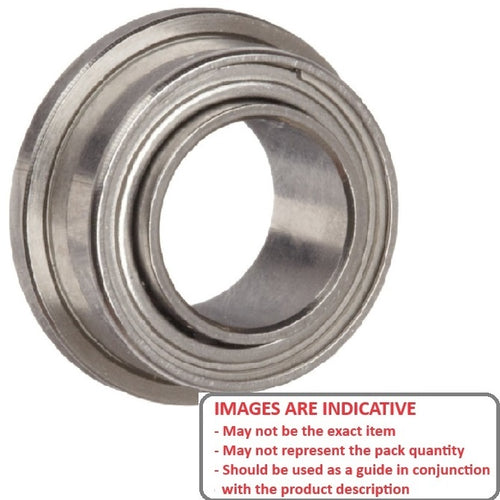

SFWR2-ZZ-MC3-JP6 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Extended InnerExtended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
Product Data

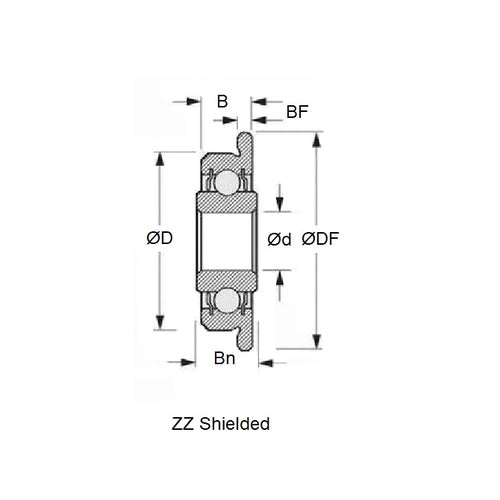

- ID (d)
:
3.175
mm
+ 0.000 / - 0.007
(Equiv. 0.125 in.) - OD (D)
9.525
mm
+ 0.000 / - 0.007
(Equiv. 0.375 in.) - Width (B)
3.969
mm
+ 0.000 / - 0.120
(Equiv. 0.156 in.) - Inner Ring Width (Bn) 4.762 mm
- Flange Diameter (DF) 11.176 mm
- Flange Width (BF) 0.762 mm
- Precision Grade P6
- Closure Type ZZ
- Bearing Type Radial Flanged with Extended Inner
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FWR2
- Limiting Speed 58800
- Cage Type Ribbon
- Static Load Rating KGf 22
- Dynamic Load Rating KGf 64
- Radii 0.30 mm
- Inner Shoulder (UI) 4.80mm
- Outer Shoulder (UO) 7.98 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade P6
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- GRW FE1-8B-2Z-P6
- GRW SFE1-8B-2Z
- GRW SFE1-8B-2Z-P6
- NHBB SFR2-ZZEE
- Similar Part SFRW2
- MPB SR2FCHHE
- MPB SR2FRHHE
- NHBB SSFR2PPEE
- ADR WFLR2-ZZ
- FWR2
- WFLR2ZZ
- SSRF-2-ZZEE
- SS-RF-2-ZZEE
- SSRF2ZZEE
- SFRW2-ZZ
- SFRW2ZZ
- SFE18B2ZP6
- SFR2ZZEE
- DDRF2ZZEE
- DMB-55
- DMB55
- DDRF-2-ZZEE
- DD-RF-2-ZZEE
- FWR2 Basic Size Ref
