SFWR2-6A-ZZ-MC3-JP6 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Extended InnerExtended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
Product Data

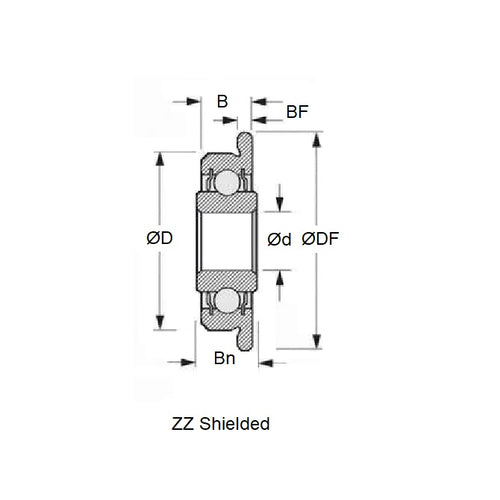

- ID (d)
:
3.175
mm
+ 0.000 / - 0.007
(Equiv. 0.125 in.) - OD (D)
9.525
mm
+ 0.000 / - 0.007
(Equiv. 0.375 in.) - Width (B)
3.571
mm
+ 0.000 / - 0.120
(Equiv. 0.141 in.) - Inner Ring Width (Bn) 4.366 mm
- Flange Diameter (DF) 10.719 mm
- Flange Width (BF) 0.787 mm
- Precision Grade P6
- Closure Type ZZ
- Bearing Type Radial Flanged with Extended Inner
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FWR2-6A
- Limiting Speed 55650
- Cage Type Ribbon
- Static Load Rating KGf 23
- Dynamic Load Rating KGf 65
- Radii 0.15 mm
- Inner Shoulder (UI) 4.60mm
- Outer Shoulder (UO) 8.20 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade P6
- Closure Type ZZ
- Max Temperature 120 Deg. C
