SFWR144A-ZZS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Extended InnerExtended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
Product Data

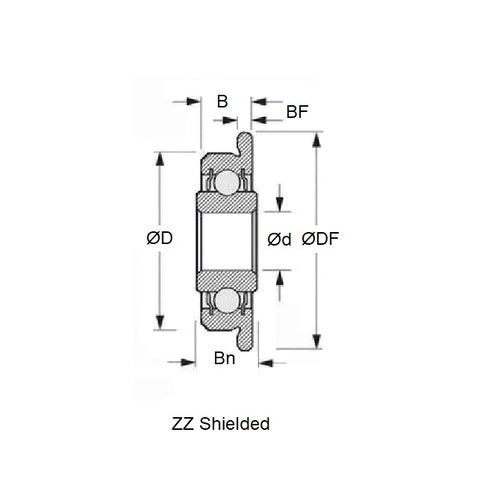

- ID (d)
:
3.175
mm
+ 0.000 / - 0.0075
(Equiv. 0.125 in.) - OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.) - Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.) - Inner Ring Width (Bn) 3.571 mm
- Flange Diameter (DF) 7.518 mm
- Flange Width (BF) 0.787 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial Flanged with Extended Inner
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FWR144A
- Limiting Speed 67000
- Cage Type Standard
- Static Load Rating KGf 10
- Dynamic Load Rating KGf 29
- Radii 0.10 mm
- Inner Shoulder (UI) 3.92mm
- Outer Shoulder (UO) 5.75 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Schluter - Champion - 0282 Flanged Bearing
- Schluter - Champion II - 0282 Flanged Bearing
- Schluter - Futura - 0282 Flanged Bearing
- Schluter - Magic - 0282 Flanged Bearing
- Schluter - Scout - 0282 Flanged Bearing
- Schluter - Scout II - 0282 Flanged Bearing
- Schluter - Superior - 0282 Flanged Bearing
Cross References
- SCHLUTER 3532
- MPB 418FCHHE
- MPB 418FRHHE
- 57155K329
- GRW FE3175-2Z
- Similar Part FLAX1-8
- ADR FLAX1-8-ZZ
- NHBB FR144PPEE
- Similar Part RFE820
- FAG RFE820-ZZ
- MPB S418FCHHE
- MPB S418FRHHE
- GRW SFE3175-2Z
- NHBB SFR144-ZZEE
- Shielded Width A SFWR144/2.779
- Shielded SFWR144A / 3
- NHBB SSFR144PPEE
- ADR WFLAX1-8-ZZ
- R1F-418-ZZEE
- RFE820ZZ
- R1F418ZZEE
- FRW144SS
- WFLAX18ZZ
- SSR1F418ZZEE
- SSR1F-418-ZZEE
- SS-R1F-418-ZZEE
- SFR144ZZEE
- SFRW144SS
- SFE31752Z
- SFWR144AZZSMC3
- SFWR144A-ZZSMC3
- DMB52
- DMB-52
- DDR1F-418-ZZEE
- DD-R1F-418-ZZEE
- DDR1F418ZZEE
- ULKUZ4008X
- FWR144A Basic Size Ref
