SPP-032-19 - Datasheet
MBA
Category Information
Spring PostsSpring Posts. This is the main category in this series
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

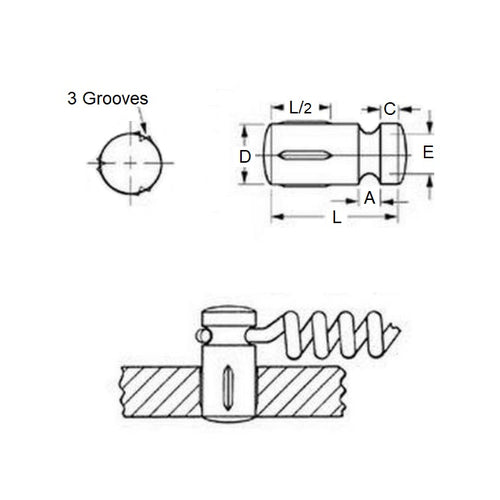

- Post Diameter
:
3.175
mm
(Equiv. 0.125 in.) - Overall Length
19.050
mm
(Equiv. 0.75 in.) - Groove Diameter
1.626
mm
(Equiv. 0.064 in.) - Head Thickness 0.794 mm
- Crown Height 0.330 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- S7270Y12524
- S7270Y-12524
