Miniature Bearings Australia
BTU0295-014-F-SS - Datasheet
MBA
Category Information

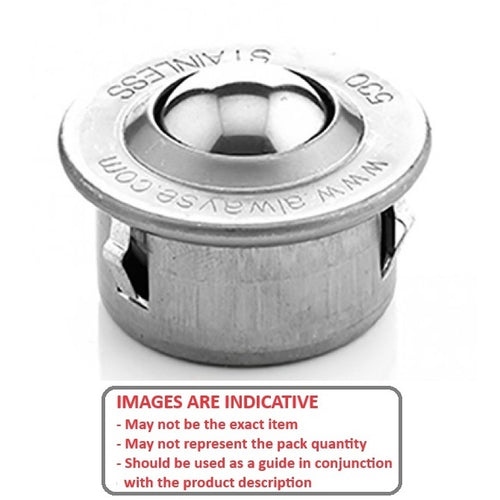

Ball Transfer Units - Flange Mount - Standard - Stainless - DeepDeep Stainless Standard Flange Mount Ball Transfer Units. This is the main category in this series
- Single ball bearing units for conveyor systems
- Max Load is applicable when used as a transfer, not as a castor
Product Data
- Max Load : 295 kg

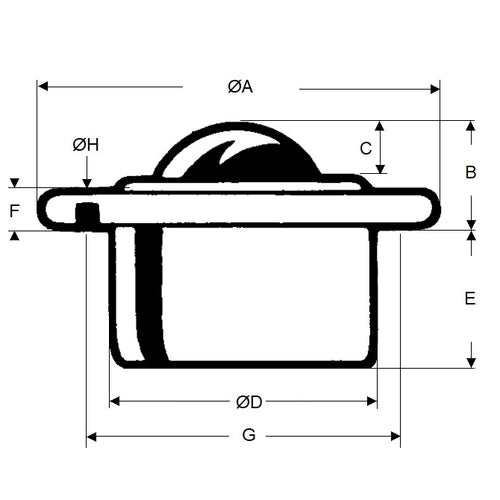

- Ball Height from Flange (B)
13.8
mm
+/- 0.3
(Equiv. 0.543 in.) - Body Diameter (D)
45
mm
+/- 0.080
(Equiv. 1.772 in.) - Overall Height (L) 37.0 mm
- Ball Diameter 22.0 mm
- Body Height 23.2 mm
- Flange Diameter 45.0 mm
- Flange Thickness 4.0 mm
- Material Stainless Steel AISI 420C and Zinc Plated Mild Steel
Product Compliance and Data
Additional Resources
Cross References
- BTEU-30SS
- BTEU30SS
- SKF-703
- SKF703
