RS-112-S02 - Datasheet
MBA
Category Information
Retaining Rings - External - Spiral Rings - Medium Duty - Stainless SteelStainless Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Popular series that will accommodate light and medium bearing series thrust loads.
- Available in military and aerospace specifications.
- Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1
Product Data

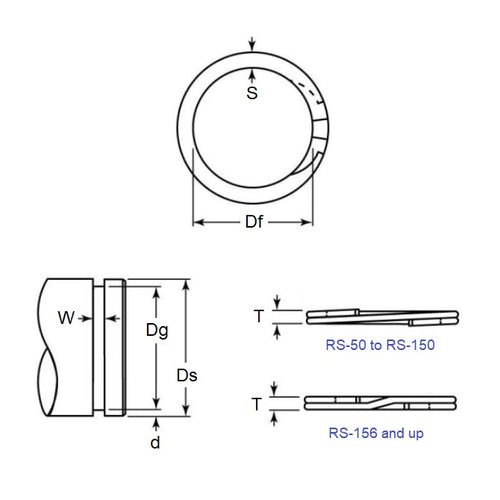

- Shaft Diameter (Ds)
:
28.58
mm
(Equiv. 1.125 in.) - Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.) - Groove Dia. (Dg)
27.51
mm
(Equiv. 1.083 in.) - Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38
- Radial Wall (S) min/max 1.91 mm +/- 0.11
- Groove Width (W) 1.11 mm +/- 0.10
- Approx. Loose Clip OD 30.69 +/- 0.03
- Groove Depth (d) 0.53
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 93513A160
- Smalley WS-112-S02
- WS112S02
