RS-112 - Datasheet

MBA

Category Information

Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Product Data

  • Shaft Diameter (Ds) : 28.58 mm
    (Equiv. 1.125 in.)
  • Clip Thickness (T) 0.94 mm +/- 0.05
    (Equiv. 0.037 in.)
  • Groove Dia. (Dg) 27.51 mm
    (Equiv. 1.083 in.)
  • Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38
  • Radial Wall (S) min/max 1.91 mm +/- 0.11
  • Groove Width (W) 1.11 mm +/- 0.10
  • Approx. Loose Clip OD 30.69 +/- 0.03
  • Groove Depth (d) 0.53
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 92623A160
  • Smalley RS-112
  • Spirolox RS-112
  • Smalley WS-112
  • WS112
  • RS112
View full details

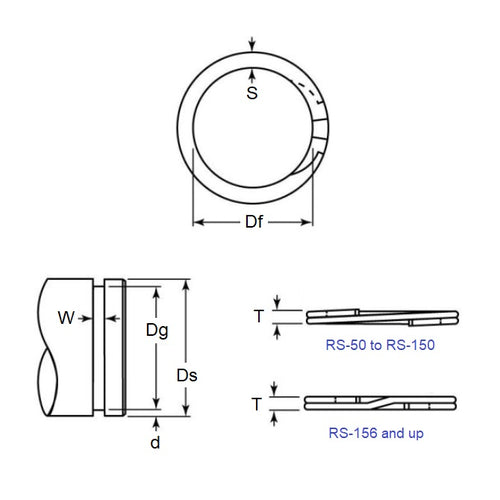

RS-112DiagramRS-112Image
